(888) 312-8812 Login SignupDELPHI TC7433 Control Arm
Tap to view 13 more
$7999
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Feb 24
DELPHI TC7433 Part Description
Manufacturer
Product Description

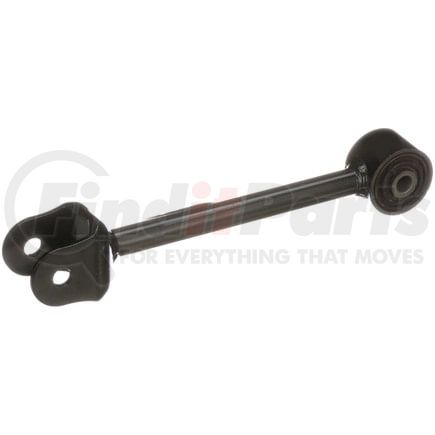

Control Arm
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Control arms utilize robot welding for consistent performance and quality
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC7433 Specifications
Product Attributes
| Position(s) | Rear Right Forward Upper |
| Item Grade | Standard Replacement |
| Bushing Color | Black |
| Construction | Tubular |
| Color | Black |
| Finish | Painted |
| Pre-Greased | No |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Control Arm Material | Steel |
| Mounting Hardware Included | No |
| Shape | Straight |
| Grade Type | Standard Replacement |
| Adjustable | No |
| Bushing Material | Rubber |
| Distance Between Mounting Holes | 40.5 MM |
| Distance Between Bushings | 255.0 MM |
| Bushing Inside Diameter | 12.2 MM |
| Bushing Length | 41.8 MM |
| Distance Between Bushings | 10.04 IN |
| Bushing Inside Diameter | 0.48 IN |
| Bushing Length | 1.65 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604339572 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
DELPHI TC7433 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7201, 102-7212, 102-7213 |
| DORMAN | CA60608, 522-324, CA60608PR |
| Hyundai | 55100-3N000, 55101-2M000, 55101-3M000 |
| MEVOTECH | CMS901113, CMS90190 |
| MOOG | RK641684 |
| MOOG Chassis Products | RK641684 |
| N/A | 55101-3N000, CMS90190, GS90190 |
DELPHI TC7433 Fits Vehicles
- Kia K900 (2015-2017)
- Hyundai Equus (2011-2016)
- Hyundai Genesis Coupe (2010-2012)
- Hyundai Genesis (2009-2014)
