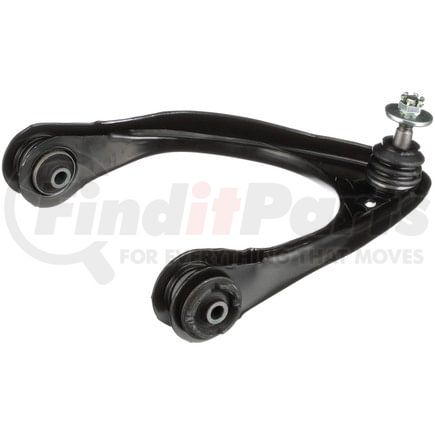

(888) 312-8812 Login SignupDELPHI TC7331 Control Arm and Ball Joint Assembly
Tap to view 13 more
$6549
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI TC7331 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC7331 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 260.20 MM |
| Control Arm Color | Black |
| Control Arm Maximum Length | 210.80 MM |
| Mounting Hole Diameter | 10.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Control Arm Maximum Width | 10.244 IN |
| Control Arm Maximum Length | 8.299 IN |
| Mounting Hole Diameter | 0.402 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604344187 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC7331 Cross References
DELPHI TC7331 Fits Vehicles
- Lexus IS300 (2018-2021)
- Lexus IS200t (2016-2017)
- Lexus IS F (2008-2014)
- Lexus IS350 (2006-2021)
- Lexus IS250 (2006-2013)
