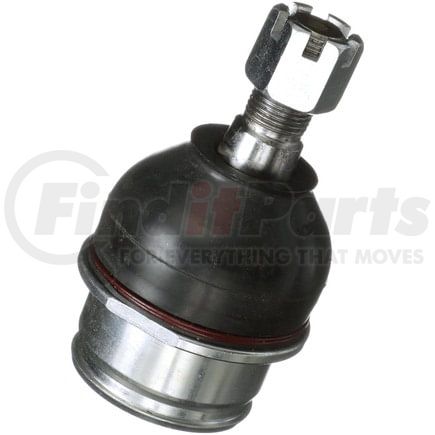

DELPHI TC6748 Part Description
DELPHI TC6748 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 2.140 IN |
| Maximum Outside Diameter | 54.30 MM |
| Color | Silver |
| Stud Thread Diameter | 18 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 64 MM |
| Type | Premium |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 2.520 IN |
| Height | 64.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Stud Thread Length | 1.28 IN |
| Stud Thread Length | 32.5 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.906 IN |
| Stud Tapered End 2 Diameter | 23 MM |
| Stud Tapered End 1 Diameter | 0.797 IN |
| Stud Tapered End 1 Diameter | 20.25 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 118.00 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604327654 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC6748 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7653 |
| Dorman | 520-448, BJ75085, BJ75085PR, CB64254 |
| MAS Industries | CB64254, CB64254PR |
| MEVOTECH | MS86523 |
| MOOG | K500224 |
| Toyota | 4335009090, 4335009100, 48068-60030 |
DELPHI TC6748 Fits Vehicles
- Lexus LX570 (2008-2011, 2013-2021)
- Toyota Land Cruiser (2008-2011, 2013-2021)
