DELPHI TC6669 Part Description
Manufacturer
Product Description

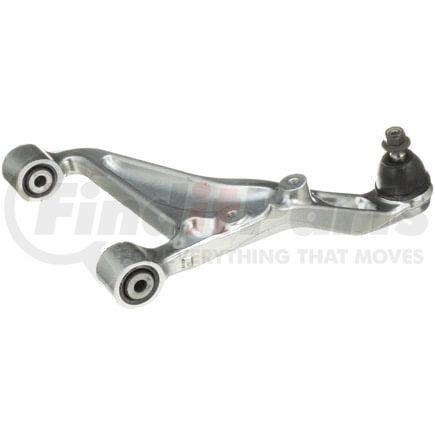

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6669 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Control Arm Maximum Width | 10.610 IN |
| Control Arm Maximum Width | 269.50 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 1.803 IN |
| Ball Joint Stud Length | 45.80 MM |
| Control Arm Maximum Length | 11.339 IN |
| Control Arm Maximum Length | 288.00 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Control Arm Material | Steel |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Ball Joint Thread Diameter | 14.00 MM |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bushing Material | Rubber |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604348697 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
DELPHI TC6669 Cross References
DELPHI TC6669 Fits Vehicles
- INFINITI G35 (2003-2007)
- Nissan 350Z (2003-2009)
