DELPHI TC5771 Part Description
Manufacturer
Product Description

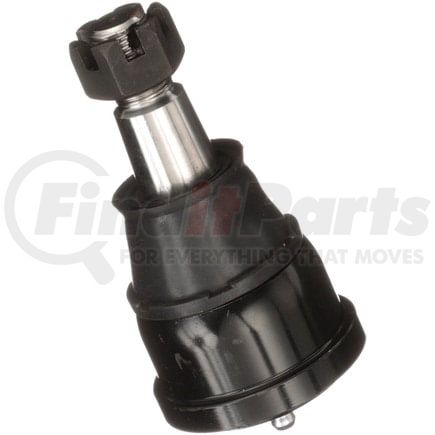

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5771 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.200 IN |
| Maximum Outside Diameter | 56.00 MM |
| Color | Black |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 55.9 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.290 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.89 IN |
| Stud Thread Length | 22.5 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.06 IN |
| Stud Tapered End 2 Diameter | 0.88 IN |
| Stud Tapered End 2 Diameter | 22.4 MM |
| Stud Tapered End 1 Diameter | 0.74 IN |
| Stud Tapered End 1 Diameter | 18.78 MM |
| Stud Threads Per Inch | 18 |
| Length | 56.00 MM |
| Length | 2.200 IN |
| Height | 108.97 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604329795 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5771 Cross References
DELPHI TC5771 Fits Vehicles
- GMC PB1500 Series (1963-1965)
- GMC PB15 Series (1966)
- GMC G25/G2500 Van (1971-1972)
- Chevrolet G20 Van (1971-1972)
- GMC P1000 (1966)
- Chevrolet C10 Panel (1963-1967)
- GMC PB1000 Series (1963-1966)
- GMC P15/P1500 Van (1967-1970)
- GMC Jimmy (1970)
- GMC G15/G1500 Van (1971-1972)
- GMC C15/C1500 Suburban (1967-1970)
- GMC C15/C1500 Pickup (1967-1970)
- Chevrolet Suburban (1963-1966)
- Chevrolet P10 Van (1968-1970)
- Chevrolet P10 Series (1963-1967)
- Chevrolet G10 Van (1971-1972)
- Chevrolet C10 Suburban (1967-1970)
- Chevrolet C10 Pickup (1963-1970)
- Chevrolet Blazer (1969-1970)
