DELPHI TC5601 Part Description
Manufacturer
Product Description

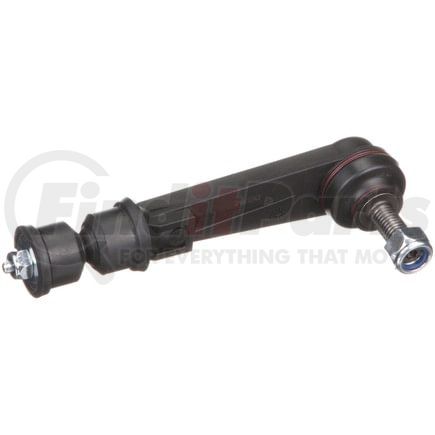

Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5601 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear |
| Material | Ball Pin - Steel |
| Bushing Outside Diameter | 27.50 MM |
| Bushing Outside Diameter | 1.083 IN |
| Bushing Color | Black |
| Length | 195.00 MM |
| Length | 7.677 IN |
| End 1 Type | Male - M8x1.25 |
| End 2 Type | Male - M12x1.75 |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Width | 49 MM |
| Width | 1.929 IN |
| Washers Included | Yes |
| Height | 70.00 MM |
| Height | 2.756 IN |
| Grade Type | Performance |
| Bolts Included | No |
| Housing Material | Plastic |
| Greaseable | No |
| Weight | 0.41 lb |
| Bushing Material | Rubber |
| Wrench Size | 5mm |
| Distance Between Mounting Holes | 131.30 MM |
| Locking Nuts Included | Yes |
| Bushing Inside Diameter | 0.354 IN |
| Bushing Inside Diameter | 9.00 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604313169 |
| VMRS Code | 016007000 |
| UNSPSC | 25172001 |
DELPHI TC5601 Cross References
DELPHI TC5601 Fits Vehicles
- GMC Terrain (2010-2017)
- Pontiac Torrent (2008-2009)
- Chevrolet Equinox (2008-2017)
