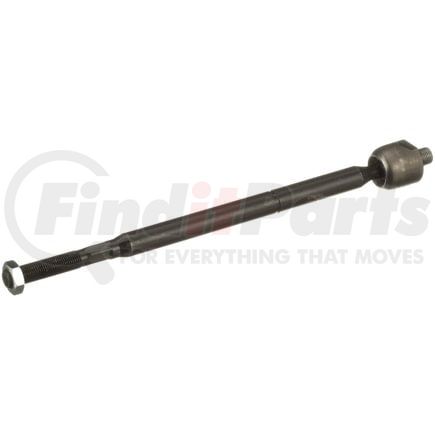

(888) 312-8812 Login SignupDELPHI TA5626 Tie Rod End
Tap to view 17 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DELPHI TA5626 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5626 Specifications
Product Attributes
| Position(s) | Front Inner |
| Item Grade | Standard Replacement |
| Length | 356.00 MM |
| Color | Black and Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 36 MM |
| Type | Straight |
| End 2 Thread Diameter | 14.00 MM |
| Height | 36.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.64 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 12.547 IN |
| Length - Stud Center to End | 318.70 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| Mounting Hardware Included | Yes |
| Grade Type | Standard Replacement |
| End 2 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604330593 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5626 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5230 |
| DORMAN | 531-892, TI74160, TI74160XL |
| MEVOTECH | MS86700 |
| MOOG Chassis Products | EV800547 |
| N/A | MS86700, JAR749 |
| Toyota | 45503-52030, 4550395055 |
DELPHI TA5626 Fits Vehicles
- Toyota Echo (2004)
- Scion xA (2004-2006)
