(888) 312-8812 Login SignupDELPHI TA5615 Tie Rod End
Tap to view 5 more
$5249
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 10
DELPHI TA5615 Part Description
Manufacturer
Product Description

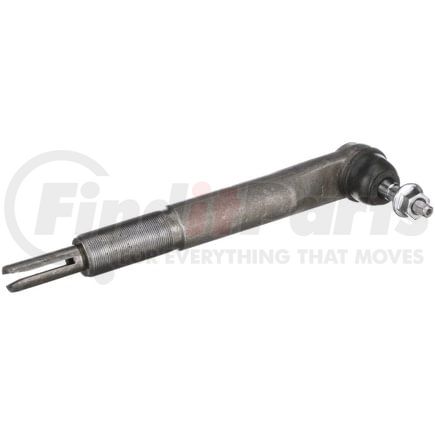

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5615 Specifications
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 337.00 MM |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 47 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 116.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 5.29 lb |
| Bearing Material | Steel |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 314.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Threads Per Inch | 16 |
| End 1 Thread Diameter | 1.375 IN |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| End 1 Thread Diameter | 34.92 MM |
| End 2 Thread Diameter | 0.551 IN |
| Length - Stud Center to End | 12.362 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| UPC | 00689604325568 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA5615 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 68038 054AD, 68038054AF |
| MEVOTECH | MS25619 |
| N/A | 68038 054AB, 68038 054AC, ES800532, JTE130 |
DELPHI TA5615 Fits Vehicles
- Ram 3500 (2011-2013)
- Ram 2500 (2011-2013)
- Dodge Ram 1500 (2008)
- Dodge Ram 3500 (2003-2010)
- Dodge Ram 2500 (2003-2010)
