(888) 312-8812 Login SignupDELPHI TA5543 Tie Rod End
Tap to view 5 more
$10049
Limited availability at this price!
5 Day Lead Time
Get it by Monday, Feb 16
DELPHI TA5543 Part Description
Manufacturer
Product Description

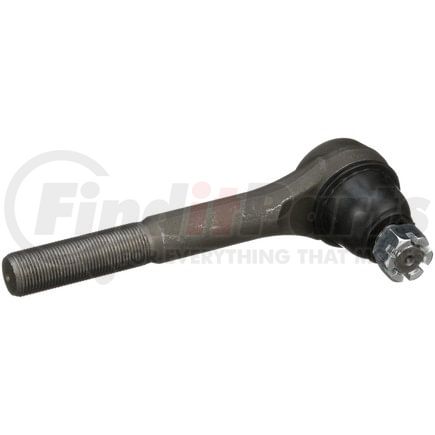

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5543 Specifications
Product Attributes
| Position(s) | Right, Right Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 269.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 77.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 1.117 IN |
| End 2 Thread Diameter | 28.38 MM |
| Height | 111.20 MM |
| Housing Material | Steel |
| Tube Diameter | 1.125 IN |
| Tube Diameter | 28.38 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 5.4 lb |
| Cone Outside Diameter | 28.10 MM |
| Bearing Material | Steel |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Length - Stud Center to End | 9.449 IN |
| Length - Stud Center to End | 240.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 12 |
| End 1 Threads Per Inch | 14 |
| End 1 Thread Diameter | 0.875 IN |
| End 1 Thread Diameter | 22.23 MM |
| Shank Length | 28.10 MM |
| Stud Length | 28.10 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 1.106 IN |
| Stud Length | 1.106 IN |
| Cone Outside Diameter | 1.106 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| UPC | 00689604315040 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA5543 Cross References
| Brand | Part Number |
|---|---|
| International Harvester (IHC) | 1668410C91, FTR8410 |
| MOOG Chassis Products | ES3220R |
| N/A | ES411R, RS3220R |
DELPHI TA5543 Fits Vehicles
- International F2654 (1980-1989)
- International 2155 (1979-1989)
- International 1955 (1979-1989)
- International F2554 (1979-1989)
- International F1924 (1979-1981)
- International 1925 S (1979-1982)
- International 8200 (1990-1997)
- International 8300 (1989-1994)
- International F2375 S (1983-1989)
- International F2276 S (1983-1989)
- International 2375 S (1983-1989)
- International 2276 S (1983-1989)
- International F2575 (1979-1989)
- International F2674 (1979-1989)
- International F2275 (1979-1989)
- International 2275 (1979-1989)
- International F2574 (1979-1989)
- International 2575 (1979-1989)
- International S2524 (1980-1981)
- International S2155 (1984-1989)
- International S2554 (1981-1989)
- International S2125 (1980-1981)
- International F1954 (1979-1989)
- International S1955 (1981-1989)
- International S1954 (1981-1988)
- International S1924 (1980-1982)
- International S1823 (1980-1982)
- International S1853 (1981-1988)
- International S1824 (1980-1985)
- International S1854 (1981-1988)
- International S1754 (1981-1989)
- International S1724 (1980-1984)
- International 7100 (1990-1995)
- International 4900 (1990-2002)
- International 4800 (1990-2002)
- International 4700 (1990-2005)
- International 4600 (1990-1994)
- International 3700 (1990)
- International 3800 (1987, 1990)
- International 2574 (1979-2003)
- International 2674 (1979-2003)
- International 2654 (1989-2002)
- International 2554 (1979-2002)
