(888) 312-8812 Login SignupDELPHI TA5480 Tie Rod End
Tap to view 17 more
$2749
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Feb 23
DELPHI TA5480 Part Description
Manufacturer
Product Description

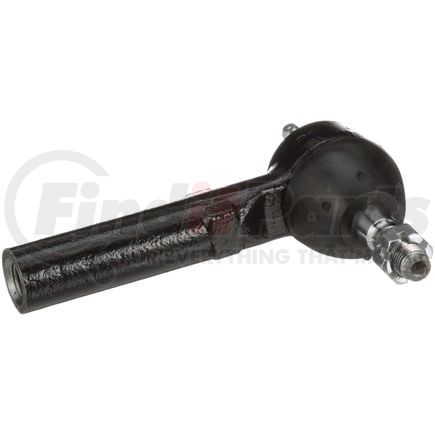

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5480 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 135.00 MM |
| Color | Black |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 39.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 97.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.12 lb |
| Cone Outside Diameter | 15.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.488 IN |
| Length - Stud Center to End | 114.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.437 IN |
| End 1 Thread Diameter | 11.11 MM |
| Shank Length | 15.00 MM |
| Stud Length | 15.00 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.591 IN |
| Stud Length | 0.591 IN |
| Cone Outside Diameter | 0.591 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| UPC | 00689604321423 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5480 Cross References
DELPHI TA5480 Fits Vehicles
- Pontiac Bonneville (1987-1999)
- Oldsmobile Regency (1997-1998)
- Oldsmobile LSS (1996-1999)
- Oldsmobile 88 (1992-1999)
- Oldsmobile Delta 88 (1986-1991)
- Oldsmobile 98 (1985-1996)
- Cadillac 60 Special (1993)
- Cadillac Fleetwood (1985-1992)
- Cadillac DeVille (1985-1993)
- Cadillac Commercial Chassis (1985-1993)
- Buick Park Avenue (1991-1996)
- Buick LeSabre (1986-1999)
- Buick Electra (1985-1990)
