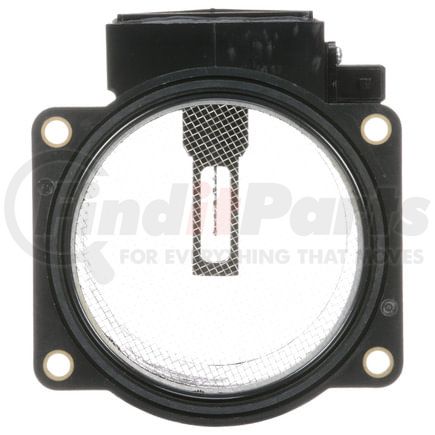

Delphi AF10565 - Mass Air Flow Sensor
$14749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Mass Air Flow Sensor
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 4.134 IN |
| Inlet Connection Diameter | 105 MM |
| Outlet Connection Diameter | 3.6 IN |
| Outlet Connection Diameter | 90.3 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 4 |
| Housing Material | Plastic |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 127 MM |
| Sensor Casing Width | 110 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 93.00 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 90 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 5.0 IN |
| Sensor Casing Width | 4.3 IN |
| Bolt Hole Center To Bolt Hole Center | 3.60 IN |
| Mounting Hole Diameter | 6.5 MM |
| Seal Outside Diameter | 3.5 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604307342 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
Part Interchanges
Fits Vehicles
- INFINITI Q45 (1990-1995)
