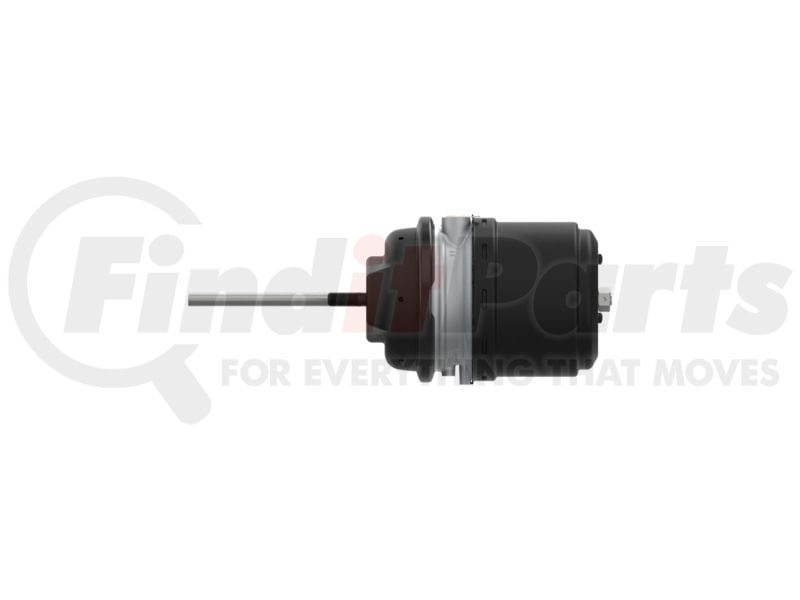

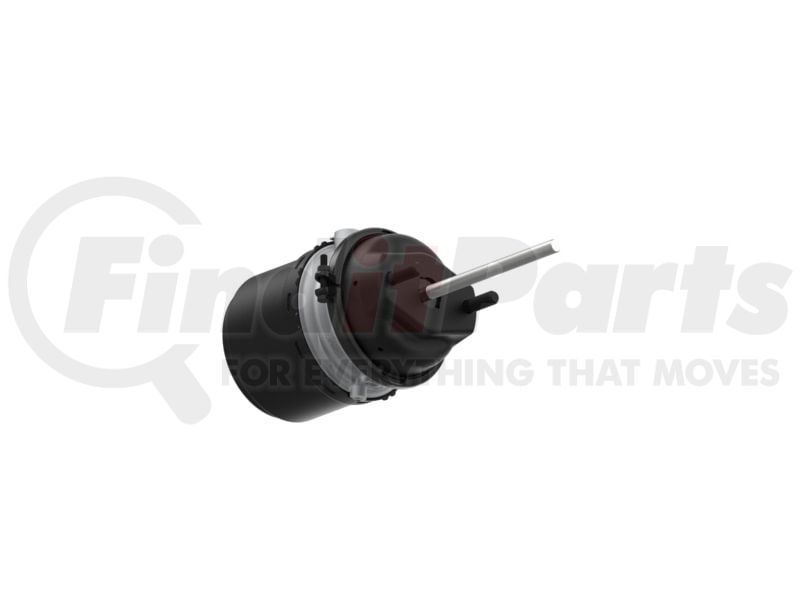

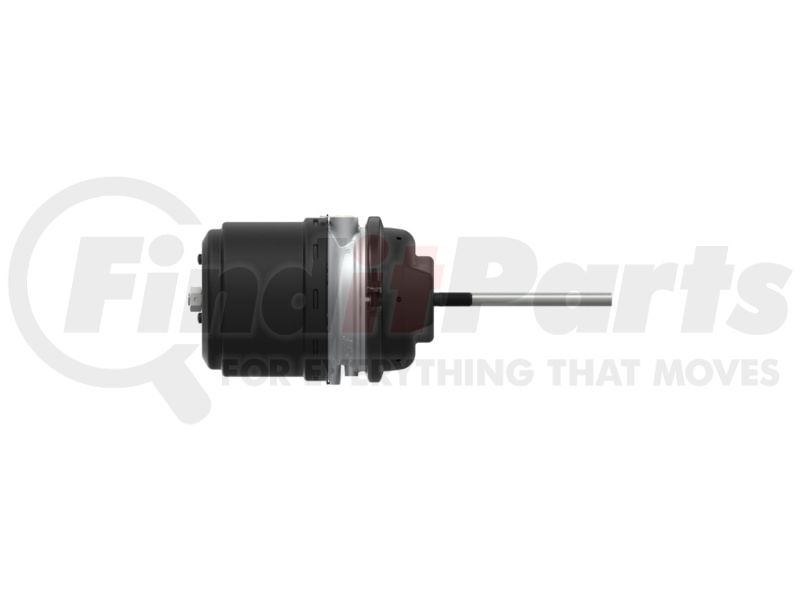

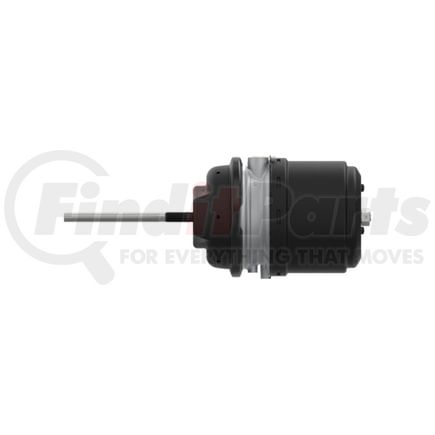

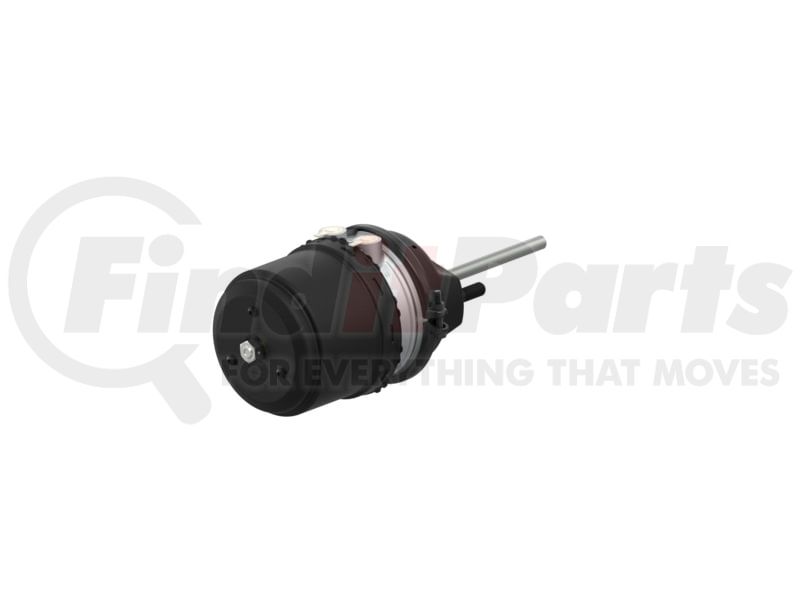

WABCO 9254911140 - Air Brake Chamber - Tristop-Cylinder Cam G-24/24
$36999
3 day lead time
. Learn more
WABCO part description
Product Attributes
| Max. operating pressure | 10.2/8.5 bar |
| Return-Spring Force | 110 N |
| Push-Rod Length | 200 mm |
| Release Pressure | 4.9 bar |
| Calculated Volume (dm³) | 21.84 |
| Total Length | 275.0 mm |
| Type | 24/24 IBV |
| Temperature Range | -40°C to +80°C |
| Stroke | 65/65 mm |
| Size | 555 x 192 x 205 |
| Weight | 19.57 |
| Bolt Lengths | 43.0 mm |
| Output Force 3 | 8100 N |
| Output Force M | 9000 N |
| Bolt Threads | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Port thread 11 | M16 x 1.5 |
| Distance between bolts | 120.6 mm |
| Yoke | No |
| Version | Without boot |
| Push-rod thread | M16 x 1.5 |
| Type Of Operation | Cam |
WABCO 9254911140 Cross Reference
We have 1 alternatives for the 9254911140 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
