Name: Reach Cooling 42-10280 MITSUBISHI FUSO 96-00- NON-USA MODELS
SKU: 4210280
Price: 563.49 USD
Availability: InStock

REACH COOLING part description

MITSUBISHI FUSO 96-00- NON-USA MODELS

Product Description

MITSUBISHI FUSO 96-00- NON-USA MODELS

Application Summary

MITSUBISHI FUSO 96-00- NON-USA MODELS

Features & Benefits

Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Folded fin edges increase stability and heat disbursement properties.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our fin edges are folded for increased stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

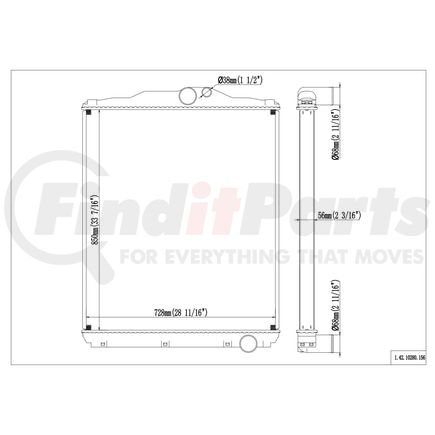

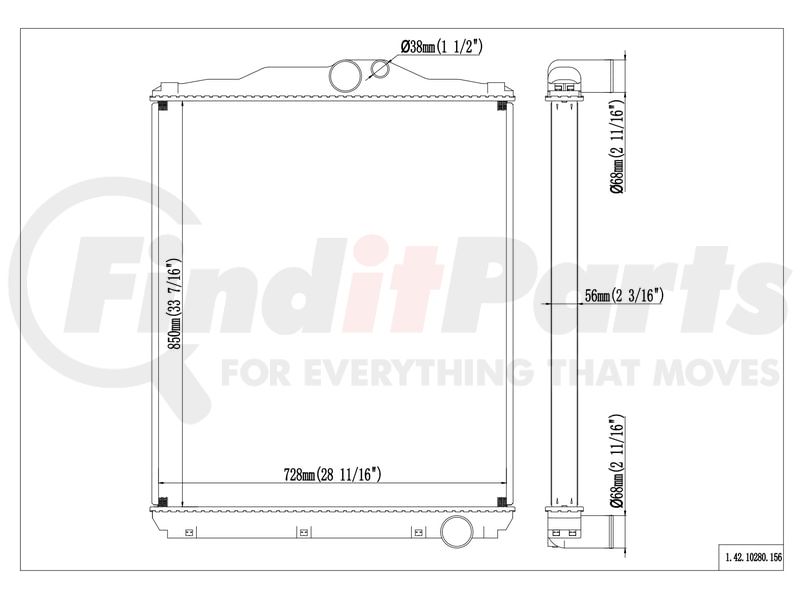

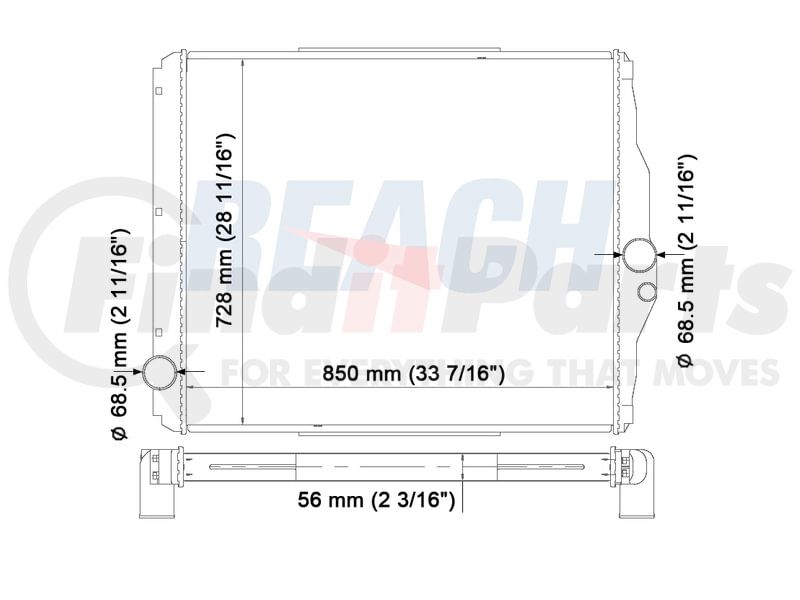

Product Attributes

Inlet Header Length	29 15/16 IN
Outlet Header Length	29 15/16 IN
Inlet Header Width	3 IN
Outlet Header Width	76.2 MM
Core Height	849.3 MM
Tank Material	Plastic
Core Row Quantity	2
Core Thickness	55.6 MM
Transmission Oil Cooler Included	No
Outlet Diameter	2 11/16 IN
Engine Oil Cooler Included	No
Core Material	Aluminum
Inlet Diameter	2 11/16 IN
Core Width	28 2/3 IN
Core Thickness	2 3/16 IN
Core Height	33 7/16 IN
Core Width	728.116 MM
Inlet Diameter	68.249 mm
Core Width	728.1 MM
Inlet Header Width	76.2 MM
Inlet Location	Top Middle
Outlet Location	Bottom Right
Core Thickness	55.549 MM
Outlet Diameter	68.3 MM
Frame Included	No
Core Height	849.299 MM
Outlet Diameter	68.249 MM
Outlet Header Length	760.4 MM
Outlet Header Width	3 IN
Inlet Diameter	68.3 MM
Inlet Header Width	76.2 mm
Outlet Header Length	760.399 mm
Outlet Header Width	76.2 mm
Inlet Header Length	760.399 mm
Inlet Header Length	760.4 MM
Radiator Cap Included	No
Down Flow Or Cross Flow Type	Cross Flow

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06949521787257
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

Fits Vehicles

Mitsubishi Fuso FE-CA (2001)
Mitsubishi Fuso FG (1998-2001)
Mitsubishi Fuso FM-SR (1996-1997, 1999-2001)
Mitsubishi Fuso FM-SP (1996-2001)
Mitsubishi Fuso FM-MR (1996-2001)
Mitsubishi Fuso FM-HR (1996-2001)
Mitsubishi Fuso FK (1996-2001)
Mitsubishi Fuso FE-SP (1996-2001)
Mitsubishi Fuso FH (1996-2001)
Mitsubishi Fuso FE-HD (1996-2001)
Mitsubishi Fuso FE (1996-2001)
