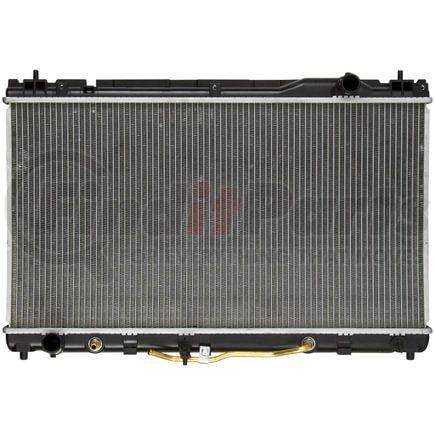

REACH COOLING 41-2434 Part Description
Manufacturer
Product Description
Radiator
Features & Benefits
- Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
No Shipping Restriction

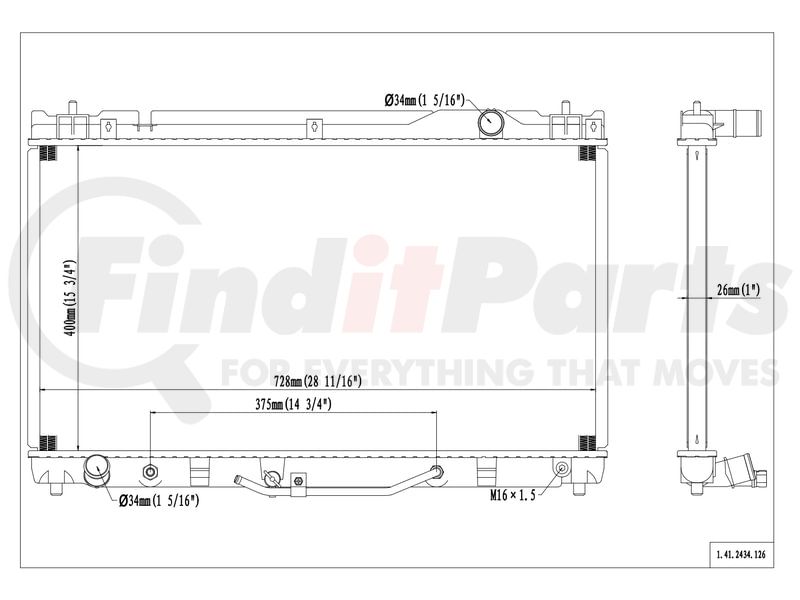

REACH COOLING 41-2434 Specifications
Product Attributes
| Core Height | 400.1 MM |
| Core Row Quantity | 1 |
| Core Height | 15.75 IN |
| Outlet Location | Bottom Left |
| Core Width | 28.666 IN |
| Inlet Header Length | 757.2 MM |
| Core Thickness | 1 IN |
| Tank Material | Plastic |
| Inlet Header Length | 29.812 IN |
| Engine Oil Cooler Included | No |
| Core Thickness | 26 MM |
| Inlet Header Width | 49.2 MM |
| Outlet Header Length | 758.8 MM |
| Transmission Oil Cooler Included | Yes |
| Core Width | 728.1 MM |
| Outlet Header Width | 50.80 MM |
| Core Material | Aluminum |
| Outlet Header Width | 2 IN |
| Outlet Header Length | 29.875 IN |
| Inlet Diameter | 1.312 IN |
| Inlet Header Width | 1.937 IN |
| Transmission Oil Cooler Distance between Fittings | 374.7 MM |
| Transmission Oil Cooler Type | Concentric |
| Inlet Location | Top Right |
| Outlet Diameter | 1.312 IN |
| Outlet Diameter | 33.3 MM |
| Transmission Oil Cooler Distance between Fittings | 14.75 IN |
| Radiator Cap Included | Not Needed |
| Inlet Diameter | 33.3 MM |
| Down Flow Or Cross Flow Type | Down Flow |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8708915000 |
| UPC | 08859869500990 |
| VMRS Code | 042002001 |
| UNSPSC | 25174002 |
REACH COOLING 41-2434 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 2434, 2435 |
| APDI | 8012434 |
| APDI RADS | 8012434 |
| Advance Auto Parts | 432439 |
| AutoNation | 19812-02438, 19812-02463 |
| AutoZone | B2434 |
| BEHR | 376724601 |
| Besuto | BES2434 |
| CRS | CUC2434, CUC2624, CRS2435, CRS2434, CUC2435AL, CUC2435 |
| CSF | 2784, 3145, 3153, 2622 |
| Cancore Industries | C2434, C2435 |
| CryoMAX | 0ATY5206, 0R-002434-A2CM, 0R-002435-A2CM, 0R002434A2CM, 0R002435A2CM, 2435, 2624, 2434 |
| DENSO | 221-0503, 2210503, 2210504, 221-0504 |
| DPI DataPoint Inc | 2434, 2435, 2624 |
| Dixin USA | DX2624, DX2434, DX2435 |
| Factory Air | RAD2434 |
| Federated | 2434 |
| Fisher | CU2434, CU2435 |
| Frontera | AM2434, AM2435 |
| GLOBAL PARTS DISTRIBUTORS | 2434C |
| Genera - Archived | 2434, 2435 |
| Keystone Auto Industries | RAD2434, RAD2435 |
| Klimoto | KLI2434 |
| Koyo | A2434, A2435 |
| Lexus | 16400-20261, 16400-20320, 164000A240, 1640020261, 1640020270, 1640020271, 1640020320, 16403-0A240, 164030A240, 16410YZZAD, 16410YZZAE, 164000A230, 164000A420 |
| Lynol Cooling Systems | LR2434 |
| Modine | 2931, 2932 |
| Murray Heat Transfer | 432439 |
| NAPA | 2931, 2932, NR2434A |
| NRF | 53588 |
| Nissens | 64633 |
| Northern Radiator | CR2434, CR2435, CR2624 |
| OEM | 164000A270, 164000A260 |
| OSC | 2434, 2435, 2434E |
| Omega | 24-80731, 2480731 |
| Onix | OR2434 |
| PACIFIC BEST INC. | PR2434A, PR2435A, PR2624KA |
| PBI | PR2434A, PR2435A |
| Parts Plus | CU2434, CU2435 |
| Partslink | TO3010260, TO3010261, TO3010286, TO3010287, TO3010262 |
| Performance Radiator | 2711, 2868 |
| Platinum Pro | RAD2434, RAD2435, RAD1910 |
| Pro Parts | 53588 |
| Proliance | 432439 |
| RadCool | 2434 |
| Silla Cooling | 8201A |
| Spectra Premium | CU2434 |
| Sunbelt Radiators Inc | SBR2435 |
| TYC | 2434, 2435 |
| TYG | TY37064B |
| Tongshi | 75000, 7500026, 75409 |
| Toyota | 16400-0A420, 16400-20261, 16400-20320, 164000A230, 164000A240, 164000A420, 1640020261, 1640020270, 1640020271, 1640020320, 16403-0A190, 16403-0A230, 16403-0A240, 164030A190, 164030A230, 164030A240, 16410YZZAD, 16410YZZAE, 164000A260, 164000A270, 16410AZ044 |
| UAC | RA 2434, RA 2434C, RA2434C, RA2434 |
| US Motor Works | USR2434 |
| Valeo | 735148, 735149, 700775, VS2434 |
| Vision | 2434, 2435 |
| Vista Pro | 432439, 9658 |
| Visteon | 9658 |
REACH COOLING 41-2434 Fits Vehicles
- Lexus ES330 (2004-2006)
- Toyota Solara (2002-2008)
- Toyota Camry (2002-2006)
- Lexus ES300 (2002-2003)
