Rancho RS999066 - RS9000XL Suspension Shock Absorber
$14149
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RANCHO part description
Product Description

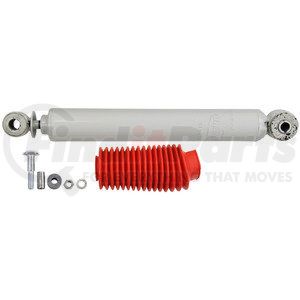

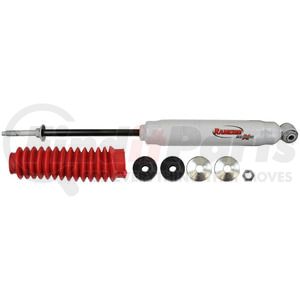

RS9000XL Suspension Shock Absorber
Features & Benefits
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Product Attributes
| Compressed Length | 19.89 IN |
| Travel Length | 8.7 in |
| Finish | Painted |
| Internal Construction Type | Tri Tube |
| Grade Type | Performance |
| Extended Length | 28.59 in |
| Adjustable Damping | Yes |
| Dust Shield Included | Yes |
| Damping Adjustment Type | Manual |
| Includes Bump Stop | No |
| Upper Mount Code | LS97 |
| Lower Mount Code | LS38 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | Yes |
| Body Diameter | 2.181 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Part Description | Shock Absorber |
| Parts Pack(s) | None |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.3/4" Sleeve OAL |
| Compressed Length | 505.2 MM |
| Extended Length | 726.2 MM |
| Travel Length | 221 MM |
| Shock Stroke | 8.7 IN |
| Shock Stroke | 221 MM |
| Lower Mount Code | LS38 |
| Upper Mount Code | LS97 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Body Diameter | 2.181 IN |
| Body Diameter | 55.4 MM |
| Cylinder Outside Diameter | 2.181 IN |
| Cylinder Outside Diameter | 55.4 MM |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | Silver |
| Cylinder Color | Silver |
| Color | Silver |
| Cylinder Finish | Painted |
| Boot Included | Yes |
| Dust Shield Diameter | 2.99 IN |
| Dust Shield Diameter | 75.946 MM |
| Dust Shield Material | Plastic |
| Dust Shield Color | Red |
| Rod Diameter | 0.6220472440944882 IN |
| Rod Diameter | 15.8 MM |
| Shaft Material | Chromed |
| Shock Absorber Bore Size | 1.2598425196850394 IN |
| Shock Absorber Bore Size | 32 MM |
| Internal Rebound Spring | No |
| Type | Telescopic |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Rebound | Yes |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance | 0 IN |
| Maximum Ride Height Raising Distance | 0 IN |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
| Adjustable Damping | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703010160 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
Fits Vehicles
- Jeep Wrangler (2018-2024)
