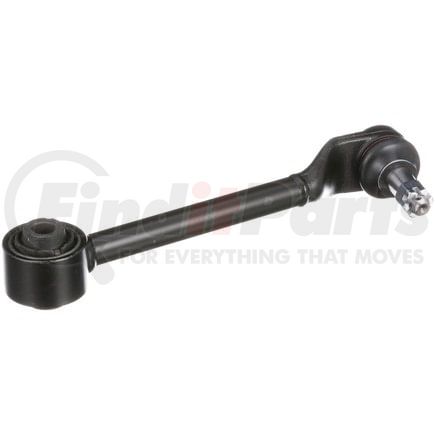

(888) 312-8812 Login SignupDELPHI TC5632 Control Arm and Ball Joint Assembly
Tap to view 3 more
$5299
Limited availability at this price!
In Stock
Get it by Monday, Dec 22
DELPHI TC5632 Part Description
DELPHI TC5632 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.228 IN |
| Control Arm Maximum Width | 82.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 2.815 IN |
| Ball Joint Stud Length | 71.50 MM |
| Control Arm Maximum Length | 10.630 IN |
| Control Arm Maximum Length | 270.00 MM |
| Mounting Hole Diameter | 0.559 IN |
| Mounting Hole Diameter | 14.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604307786 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
DELPHI TC5632 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-8035 |
| MOOG Chassis Products | RK621904 |
| Honda | 52390-STX-A01 |
| MAS Industries | CB50588, CB50588PR |
| Dorman | 522-434 |
| N/A | CMS601030, RK100122 |
DELPHI TC5632 Fits Vehicles
- Honda Pilot (2009-2015)
- Acura MDX (2007-2013)
