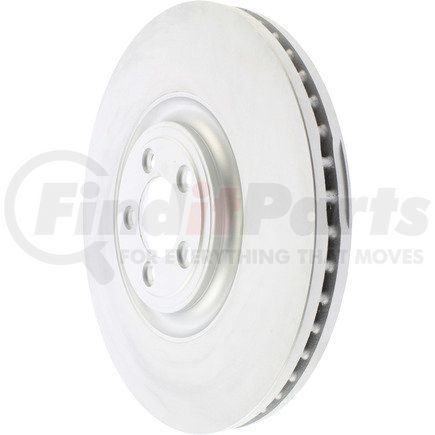

(888) 312-8812 Login SignupCENTRIC 320.20030H Centric GCX Rotor with Full Coating and High Carbon Content
Tap to view 4 more
$14449
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Feb 24
CENTRIC 320.20030H Part Description
Manufacturer
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.20030H Specifications
Product Attributes
| Weight [cntrc] Lbs | 39.350 |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 5 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 17.860 |
| Disc Mounting [cntrc] | Floating |
| Stud/Lug Hole Diameter | 0.555 IN |
| Stud/Lug Hole Diameter | 14.100 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Center Hole Diameter | 70.900 MM |
| Center Hole Diameter | 2.791 IN |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 14.961 IN |
| Outside Diameter | 380.000 MM |
| Overall Height | 1.890 IN |
| Overall Height | 48.000 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 36.000 MM |
| Nominal Thickness | 1.417 IN |
| Discard Thickness | 34.000 MM |
| Discard Thickness | 1.339 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00889590386455 |
CENTRIC 320.20030H Cross References
CENTRIC 320.20030H Fits Vehicles
- Jaguar XKR-S (2012, 2014)
- Jaguar XJR575 (2018)
- Jaguar XKR (2010-2012, 2014-2015)
- Jaguar XFR (2010-2015)
- Jaguar XF (2010-2015)
- Jaguar XJ (2010-2018)
- Jaguar XJR (2014-2017)
- Jaguar F-Type (2014-2020)
- Jaguar XFR-S (2013-2015)
