RAYBESTOS 982337 Part Description
Manufacturer
Product Description

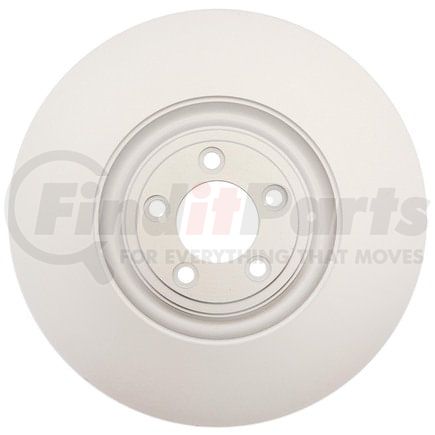

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2019-2010 Jaguar XJ Front, 2019-2018 Jaguar XJR575 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 982337 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.795 IN |
| Center Hole Diameter | 71 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.339 IN |
| Discard Thickness | 34 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.756 IN |
| Inside Diameter | 222.4 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.551 IN |
| Mounting Bolt Hole Diameter | 14 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.413 IN |
| Nominal Thickness | 35.9 MM |
| Outside Diameter | 14.961 IN |
| Outside Diameter | 380 MM |
| Overall Height | 1.886 IN |
| Overall Height | 47.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213310825 |
RAYBESTOS 982337 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH291616P |
| ATE BRAKE PRODUCTS | 436122, SP36122 |
| AUTOXTRA | AX901706 |
| AUTOZONE | 45477, 45477DG |
| BRAKEBEST | 921256RGS |
| Brembo | 09.D433.11 |
| CENTRIC | 120.20030, 121.20030, 125.20030, 126.20030SL, 126.20030SR, 127.20030L, 127.20030R, 128.20030CL, 128.20030CR, 128.20030L, 128.20030R, 320.20030H |
| Centric Parts | 120.20030, 121.20030, 125.20030, 126.20030SL, 126.20030SR, 127.20030L, 127.20030R, 128.20030CL, 128.20030CR, 128.20030L, 128.20030R, 320.20030H |
| DURA CORP | BR901706 |
| DuraGo | BR901706 |
| JAGUAR | C2P12622 |
| PEP BOYS | 45477G |
| Qualis | 45477 |
| WORLDPAC | 1427-530058 |
RAYBESTOS 982337 Fits Vehicles
- Jaguar F-Type (2014-2021)
- Jaguar XKR-S (2012-2015)
- Jaguar XKR (2010-2015)
- Jaguar XJR (2014-2017)
- Jaguar XFR-S (2013-2015)
- Jaguar XFR (2010-2015)
- Jaguar XF (2010-2015)
- Jaguar XJ (2010-2019)
- Jaguar XJR575 (2018-2019)
