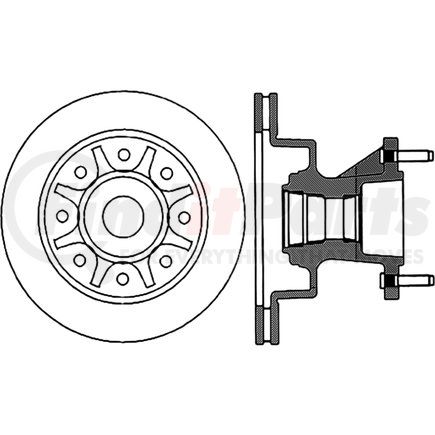

(888) 312-8812 Login SignupCENTRIC 320.65109F Centric GCX Rotor with Full Coating
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.65109F Part Description
Manufacturer
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.65109F Specifications
Product Attributes
| Inner Bearing # [cntrc] | 415.68004 |
| Weight [cntrc] Lbs | 56.100 |
| Outer Race # [cntrc] | 416.68001 |
| Inner Race # [cntrc] | 416.68003 |
| Vane Style [cntrc] | Pillar |
| Inner Seal # [cntrc] | 417.65003 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Outer Bearing # [cntrc] | 415.68002 |
| Weight [cntrc] Kgs | 25.500 |
| Discard Thickness | 36.000 MM |
| Discard Thickness | 1.417 IN |
| Nominal Thickness | 37.900 MM |
| Nominal Thickness | 1.492 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 229.900 MM |
| Overall Height | 9.051 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 330.000 MM |
| Rotor Outside Diameter | 12.992 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 125.000 MM |
| Center Hole Diameter | 4.921 IN |
| Mounting Bolt Hole Circle Diameter | 170.000 MM |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590393002 |
CENTRIC 320.65109F Cross References
CENTRIC 320.65109F Fits Vehicles
- Ford F-350 Super Duty (2003-2004)
