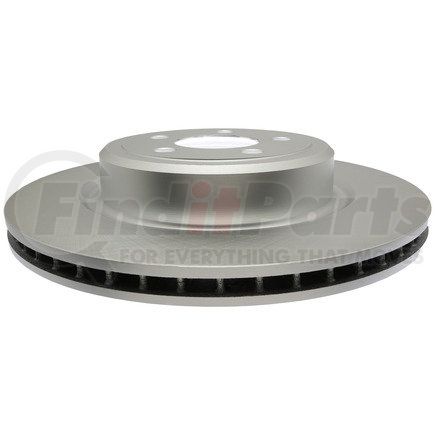

(888) 312-8812 Login SignupCENTRIC 320.63065F Centric GCX Rotor with Full Coating
$8649
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 2
CENTRIC 320.63065F Part Description
Manufacturer
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.63065F Specifications
Product Attributes
| Max Pb Drum Dia [cntrc] Mm | 185.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] In | 7.303 |
| Weight [cntrc] Kgs | 11.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Lbs | 24.250 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 24.500 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.100 MM |
| Nominal Thickness | 1.028 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 67.200 MM |
| Overall Height | 2.646 IN |
| Outside Diameter | 350.000 MM |
| Outside Diameter | 13.780 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 183.900 MM |
| Nominal Drum Diameter | 7.240 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.858 IN |
| Center Hole Diameter | 72.600 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.900 MM |
| Stud/Lug Hole Diameter | 0.665 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590392302 |
CENTRIC 320.63065F Cross References
CENTRIC 320.63065F Fits Vehicles
- Dodge Magnum (2006-2008)
- Chrysler 300 (2014-2016)
- Dodge Charger (2006-2021)
