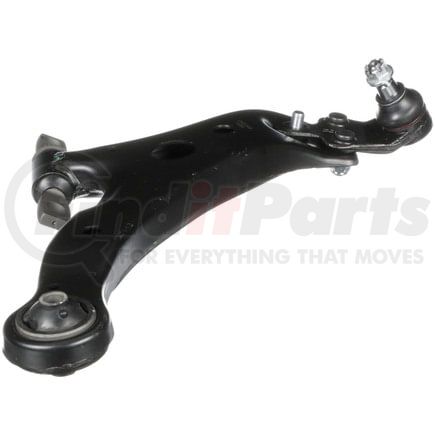

DELPHI TC5614 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5614 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 12.520 IN |
| Control Arm Maximum Width | 318.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 5.433 IN |
| Ball Joint Stud Length | 138.00 MM |
| Control Arm Maximum Length | 16.772 IN |
| Control Arm Maximum Length | 426.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 59.80 MM |
| Thread Direction | Clockwise (Right) |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 2.354 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604301692 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5614 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-5921, 102-7782 |
| DORMAN | CB75264, 522-724, CB75264PR |
| Dorman | 520-402, 527-004 |
| MAS Industries | CA74414, CA74414PR |
| MEVOTECH | CMS86182 |
| MOOG Chassis Products | RK620724, RK642725, 102-5921, 102-7782, 102-8090, K201640, RK621476 |
| N/A | GS86182, CB75264, 522-724, CMS86182, CB75264PR, CMS20246, 622.44094, CA64233PR, 526-931 |
| Toyota | 48068-06150, 48068-06170, 48068-07040, 48068-07050, 48068-33070 |
DELPHI TC5614 Fits Vehicles
- Lexus ES300h (2013-2018)
- Lexus ES350 (2007-2018)
- Toyota Camry (2007-2017)
- Toyota Avalon (2005-2018)
