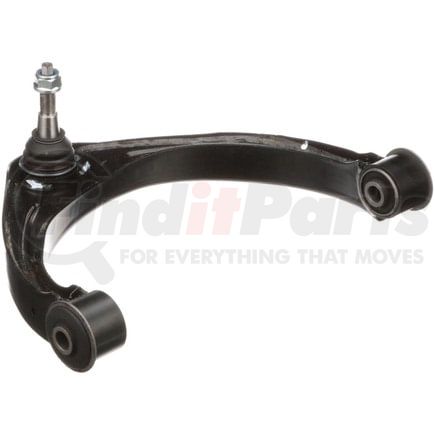

(888) 312-8812 Login SignupDELPHI TC5220 Control Arm and Ball Joint Assembly
Tap to view 6 more
$7999
Limited availability at this price!
In Stock
Get as soon as Friday, Oct 9
DELPHI TC5220 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5220 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 11.417 IN |
| Control Arm Maximum Width | 290.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 3.740 IN |
| Ball Joint Stud Length | 95.00 MM |
| Control Arm Maximum Length | 15.354 IN |
| Control Arm Maximum Length | 390.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Country of Origin (Primary) | CN |
| UPC | 00689604296295 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC5220 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 68227 900AB, 55398 404AA, 68163 960AB, 68163 960AC, 68163 960AD, 68163960AA |
| DORMAN | CB81228, CB81228PR |
| Dorman | 522-468 |
| MAS Industries | CB81228, CB81228PR, AK811025 |
| MEVOTECH | CTXMS25148 |
| MOOG | CK621897 |
| MOOG Chassis Products | RK621897 |
| Mevotech | CMS251058 |
| N/A | JTC2053, GS251058, CTXMS25148, RK643073, CK621897, 622.67062, 4877202AA, 68227900AA, 52855 100AA |
DELPHI TC5220 Fits Vehicles
- Dodge Ram 1500 (2009-2010)
- Ram 1500 (2011-2018)
