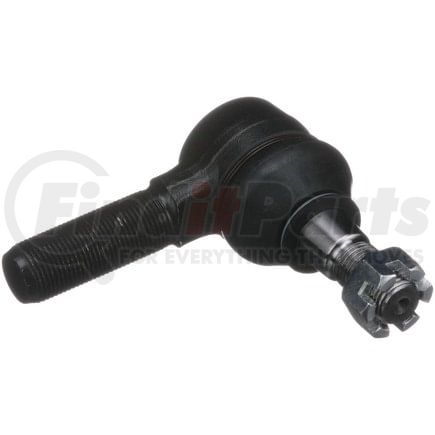

Delphi TA5557 - Tie Rod End
$4299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 103.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 46 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 16.00 MM |
| Height | 95.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.34 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 86.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 22.00 MM |
| Grade Type | Standard |
| End 2 Thread Diameter | 0.630 IN |
| Length - Stud Center to End | 3.386 IN |
| End 1 Thread Diameter | 0.866 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604314982 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Isuzu Reach (2012-2013)
- Isuzu NPR-HD (1999-2013)
- Isuzu NPR (1998-2013)
- Isuzu NRR (2005-2013)
- Isuzu NQR (1998-2013)
- GMC W5500HD Forward (2004-2009)
- GMC W4500 Forward (1998-2009)
- Chevrolet W3500 Tiltmaster (1999-2009)
- Chevrolet W5500 Tiltmaster (2000-2009)
- Chevrolet W4500 Tiltmaster (1998-2009)
- GMC W3500 Forward (1999-2008)
- Chevrolet W5500HD Tiltmaster (2004-2009)
- GMC W5500 Forward (2000-2009)
