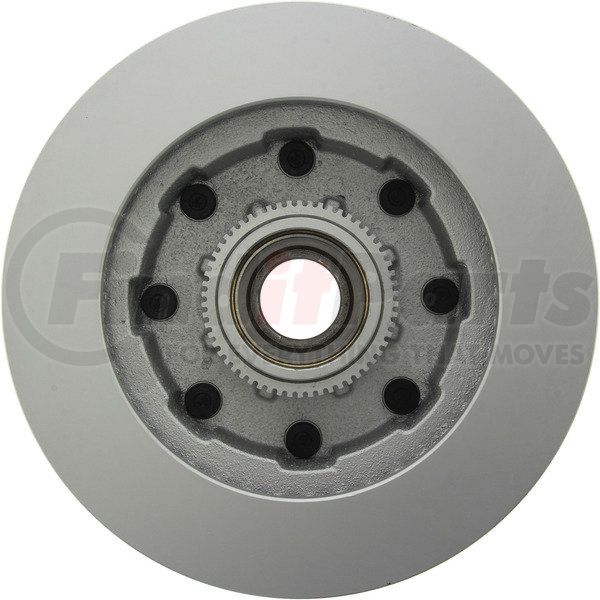

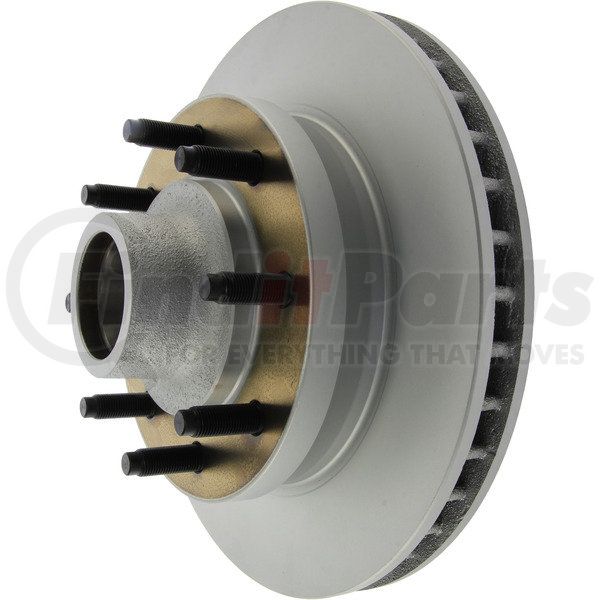

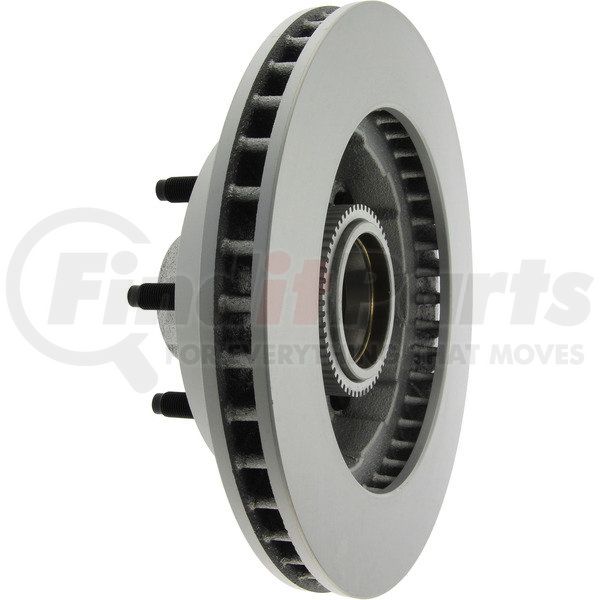

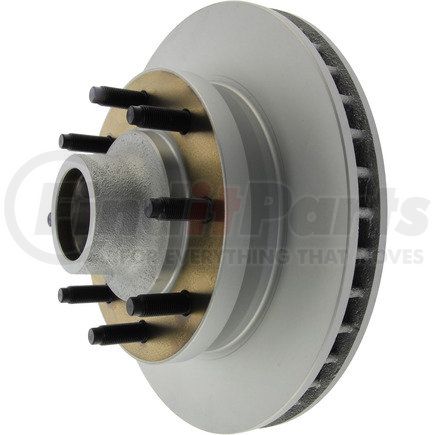

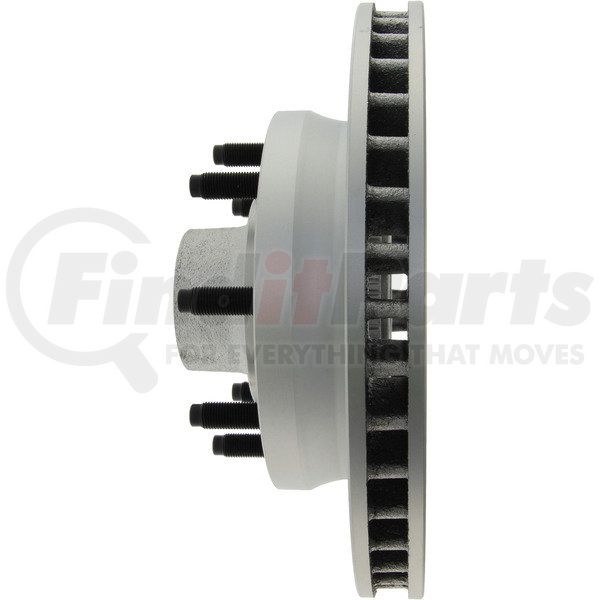

CENTRIC 320.67030F - Disc Brake Rotor - Vented, with Full Coating
$12399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
GCX Rotor with Full Coating
Application Summary
1994 - 1999 Dodge Ram 2500
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Centric; Centric Parts; GxC Brake; GxC Rotor; Brake Rotor
Product Attributes
| Discard Thickness | 1.201 IN |
| Discard Thickness | 30.51 MM |
| Nominal Thickness | 1.287 IN |
| Nominal Thickness | 32.70 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.563 IN |
| Outside Diameter | 12.512 IN |
| Outside Diameter | 317.80 MM |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Center Hole Diameter | 4.764 IN |
| Center Hole Diameter | 121.00 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Mounting Bolt Hole Circle Diameter | 165.10 MM |
| Stud/Lug Hole Quantity | 8 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Height | 5.177 |
| Hub Hole/Whl Reg [cntrc] | 121 MM |
| Inner Bearing # [cntrc] | 410.91035 |
| Inner Seal # [cntrc] | 417.660 |
| Misc Holes [cntrc] | 8 |
| Outer Bearing # [cntrc] | 415.68002 |
| Solid / Vented | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 16.360 KG |
| Weight [cntrc] | 36.000 LB |
| Disc Mounting | Hub & Rotor |
| Hub Hole Diameter | 121 MM |
| Inner Bearing | 410.91035 |
| Inner Seal | 417.660 |
| Misc Holes | 8 |
| Outer Bearing | 415.68002 |
| Vane Style | Straight |
| Weight | 16.360 KG |
| Weight | 36.000 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00889590393705 |
Part Interchanges
CENTRIC 320.67030F Cross Reference
We have 2 alternatives for the 320.67030F by CENTRIC:
Fits Vehicles
- Dodge Ram 2500 (1994-1999)
