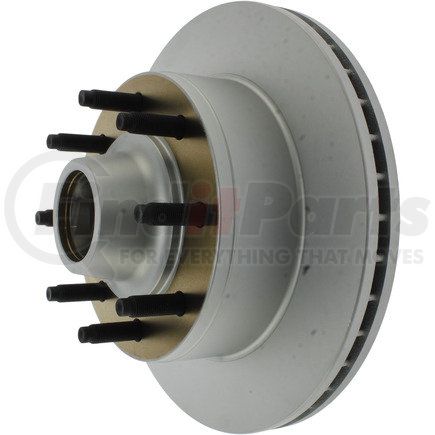

Centric 320.65045F - Centric GCX Rotor with Full Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 16.590 |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 36.500 |
| Inner Bearing # [cntrc] | 415.68004 |
| Outer Race # [cntrc] | 416.68001 |
| Inner Seal # [cntrc] | 417.65003 |
| Outer Bearing # [cntrc] | 415.68002 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Race # [cntrc] | 416.68003 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 28.000 MM |
| Discard Thickness | 1.102 IN |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.563 IN |
| Overall Height | 143.400 MM |
| Overall Height | 5.646 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| 54 | 331.000 MM |
| Rotor Outside Diameter | 13.031 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 123.500 MM |
| Center Hole Diameter | 4.862 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590392494 |
Part Interchanges
CENTRIC 320.65045F Cross Reference
We have 2 alternatives for the 320.65045F by CENTRIC:
Fits Vehicles
- Ford F-150 Heritage (2004)
- Ford E-350 Econoline Club Wagon (1995-1998)
- Ford E-350 Econoline (1995-1998)
- Ford E-250 Econoline (1995-1999)
- Ford F-250 HD (1997)
- Ford F-350 (1995-1997)
- Ford F-250 (1995-1999)
- Ford F-150 (2000-2003)
