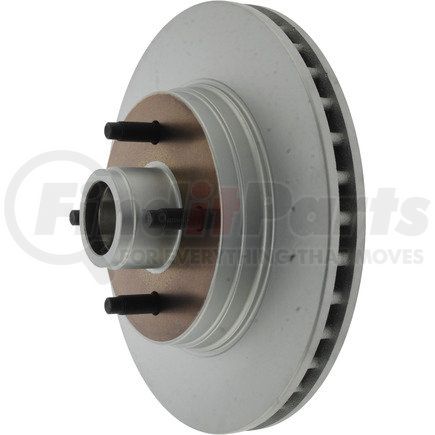

Centric 320.61026F - Centric GCX Rotor with Full Coating
$7699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 7.050 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Inner Seal # [cntrc] | 417.61003 |
| Weight [cntrc] Lbs | 15.500 |
| Outer Bearing # [cntrc] | 410.91012 |
| Inner Bearing # [cntrc] | 410.91005 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 24.700 MM |
| Discard Thickness | 0.972 IN |
| Nominal Thickness | 26.100 MM |
| Nominal Thickness | 1.028 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 95.300 MM |
| Overall Height | 3.752 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 277.000 MM |
| Rotor Outside Diameter | 10.906 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 63.700 MM |
| Center Hole Diameter | 2.508 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 4 |
Additional Information
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590391008 |
Part Interchanges
CENTRIC 320.61026F Cross Reference
We have 1 alternatives for the 320.61026F by CENTRIC:
Fits Vehicles
- Ford Mustang (1987-1993)
