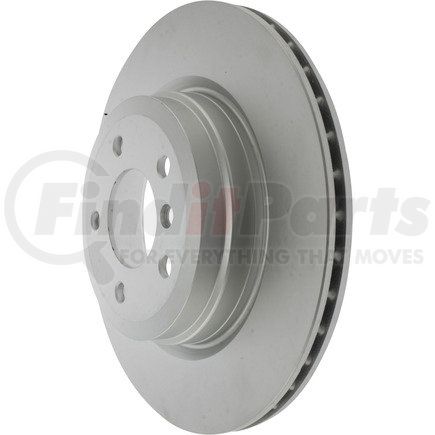

(888) 312-8812 Login SignupCENTRIC 320.34080H Centric GCX Rotor with Full Coating and High Carbon Content
Tap to view 4 more
$7349
Limited availability at this price!
In Stock
Get it by Monday, Jan 12
CENTRIC 320.34080H Part Description
Manufacturer
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.34080H Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 18.200 |
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Kgs | 8.270 |
| Discard Thickness | 0.803 IN |
| Discard Thickness | 20.400 MM |
| Nominal Thickness | 21.900 MM |
| Nominal Thickness | 0.862 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 67.200 MM |
| Overall Height | 2.646 IN |
| Outside Diameter | 13.228 IN |
| Outside Diameter | 336.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 185.000 MM |
| Nominal Drum Diameter | 7.283 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75.000 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.800 MM |
| Stud/Lug Hole Diameter | 0.583 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590387407 |
CENTRIC 320.34080H Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980485FZN, 980485R, 980485 |
CENTRIC 320.34080H Fits Vehicles
- BMW 330xi (2006)
- BMW 330i (2006)
- BMW X1 (2010-2015)
- BMW 335xi (2007-2008)
- BMW 335is (2011-2013)
- BMW 335i xDrive (2009-2013)
- BMW 335i (2007-2013)
- BMW 335d (2009-2011)
CENTRIC 320.34080H Cross References
We have 3 alternatives for the 320.34080H by CENTRIC:
