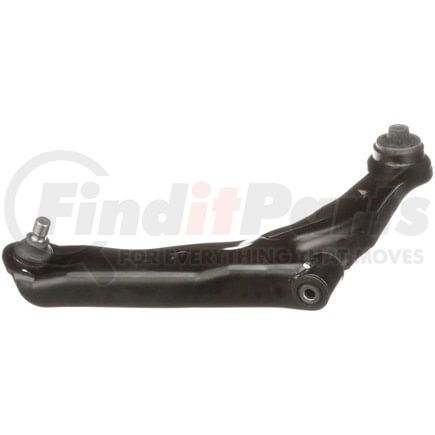

(888) 312-8812 Login SignupDELPHI TC5180 Control Arm and Ball Joint Assembly
Tap to view 23 more
$5249
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC5180 Part Description
DELPHI TC5180 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 410.00 MM |
| Control Arm Maximum Width | 16.142 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 18.00 MM |
| Ball Joint Thread Diameter | 0.709 IN |
| Ball Joint Stud Length | 58.00 MM |
| Ball Joint Stud Length | 2.283 IN |
| Control Arm Maximum Length | 500.00 MM |
| Control Arm Maximum Length | 19.685 IN |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 18.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.709 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| UPC | 00689604296127 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5180 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | CK80397, RK80397 |
| Ford | 3L8Z 3078-AB, 4L8Z 3078-R |
| Dorman | 520-284 |
| TRW | JBJ864, JTC1521 |
| N/A | 2L8Z 3078-AA, 101-5211, GK80397, CB65114, CTXK80397, CMK80397 |
DELPHI TC5180 Fits Vehicles
- Mazda Tribute (2001-2004)
- Ford Escape (2001-2004)
