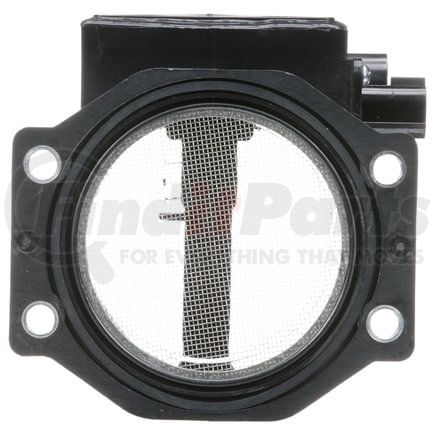

(888) 312-8812 Login SignupDELPHI AF10566 Mass Air Flow Sensor
$16599
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI AF10566 Part Description
DELPHI AF10566 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.287 IN |
| Inlet Connection Diameter | 83.5 MM |
| Outlet Connection Diameter | 2.8 IN |
| Outlet Connection Diameter | 70.3 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 4 |
| Housing Material | Plastic |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 120 MM |
| Sensor Casing Width | 99 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 82.00 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 70 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 4.7 IN |
| Sensor Casing Width | 3.8 IN |
| Bolt Hole Center To Bolt Hole Center | 3.20 IN |
| Mounting Hole Diameter | 6.5 MM |
| Seal Outside Diameter | 2.7 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604307359 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10566 Part Interchanges
| Brand | Part Number |
|---|---|
| Spectra Premium | MA211 |
| BWD | 221082M |
| Datsun/Nissan | 22680-70F05 |
| CARDONE Reman | 74-10276 |
| Wells | SU5044 |
| Standard Motor Products | MF21082 |
| NAPA Reman Computers | XTP410276 |
| N/A | 245-1129 |
DELPHI AF10566 Fits Vehicles
- Nissan 240SX (1995-1998)
