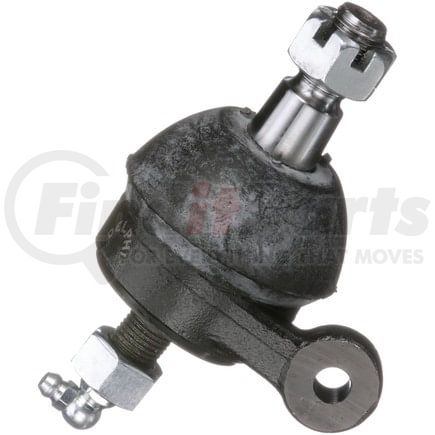

DELPHI TC5383 Ball Joint

★★★★★ (0)
Delphi TC5383 Suspension Ball Joint Ball Joint
DELPHI
Tap to view 2 more

$26.99

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 25
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI TC5383 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC5383 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Front Lower
MaterialSteel
ColorBlack
Stud Thread Diameter0.563 IN
Castle Nut IncludedYes
Grease Fitting IncludedYes
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width50 MM
Cotter Pin IncludedYes
Cotter Pin HoleYes
Mounting Hardware IncludedYes
Mounting Bolt Length1.220 IN
Mounting Bolt Length31.00 MM
Washers IncludedYes
Height4.094 IN
Nuts IncludedYes
Mounting Hole Quantity2
AdjustableNo
GreaseableYes
Stud Thread Length0.866 IN
Wrench Size12.7mm
Stud TypeThreaded
Mounting TypeBolt-In
Dust Boot MaterialRubber
Mounting Bolt Shank Diameter0.313 IN
Mounting Bolt Head Diameter0.555 IN
Mounting Bolt Head Diameter14.10 MM
Mounting Bolts IncludedYes
Mounting Bolt Threads Per Inch24
Mounting Bolt Thread Length28.00 MM
Mount Plate IncludedNo
Tapered StudYes
Stud Taper Per Foot0.125 IN
Stud Tapered End 2 Diameter0.657 IN
Stud Tapered End 2 Diameter16.7 MM
Stud Tapered End 1 Diameter0.752 IN
Stud Tapered End 1 Diameter19.1 MM
Stud Threads Per Inch18
Length98.00 MM
Length3.860 IN
Stud Thread Diameter14.3 MM
Height103.99 MM
Stud Thread Length22 MM
Mounting Bolt Shank Diameter7.95 MM
Mounting Bolt Thread Length1.100 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TR
UPC00689604290132
VMRS Code016001015
UNSPSC25174203

DELPHI TC5383 Cross References

BrandPart Number
DORMANB6035, B6035PR
General Motors3749309, 3758406, 3813206, 3819244, 3832162, 3846266, 3865828, 3865829, 3886420, 3886422, 3917822
MEVOTECHMK6035
MOOG Chassis ProductsK6035
N/AMK6035, B6035, GK6035
TRWJBJ918

DELPHI TC5383 Fits Vehicles

  • Chevrolet Bel Air (1958-1970)
  • Chevrolet Biscayne (1958-1970)
  • Chevrolet Brookwood (1969-1970)
  • Chevrolet Caprice (1966-1970)
  • Chevrolet Corvair Truck (1961-1964)
  • Chevrolet Corvette (1963-1982)
  • Chevrolet El Camino (1959-1960)
  • Chevrolet Estate (1969-1970)
  • Chevrolet Impala (1958-1970)
  • Chevrolet Kingswood (1959-1961, 1969-1970)
  • Chevrolet Parkwood (1959-1961)
  • Chevrolet Sedan Delivery (1958)
  • Chevrolet Townsman (1969-1970)
