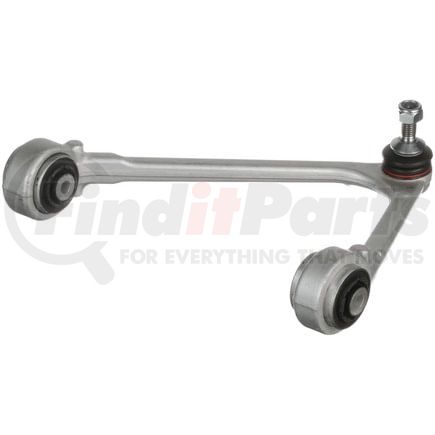

(888) 312-8812 Login SignupDELPHI TC3548 Control Arm and Ball Joint Assembly
Tap to view 6 more
$11449
Limited availability at this price!
In Stock
Get as soon as Monday, Oct 5
DELPHI TC3548 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3548 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 320.00 MM |
| Control Arm Maximum Width | 12.598 IN |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Stud Length | 24.00 MM |
| Ball Joint Stud Length | 0.945 IN |
| Control Arm Maximum Length | 204.00 MM |
| Control Arm Maximum Length | 8.032 IN |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604298688 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC3548 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7186 |
| DORMAN | CB85197, 521-429, CB85197PR |
| Jaguar | C2D2475, XR81764, XR852091, XR856013 |
| MAS Industries | CB24017, CB24017PR |
| MEVOTECH | CMS40120, CMS101497 |
| MEYLE | 18 16 050 0005, 18 16 050 0007 |
| MOOG | RK621665 |
| N/A | CK621665, CMS40120, CB85197, 521-429, CMS101497, GS40120, RK621665, 623.6113, KSC5121 |
DELPHI TC3548 Fits Vehicles
- Jaguar XJR (2014-2017)
- Jaguar F-Type (2014-2016)
- Jaguar XKR-S (2012-2015)
- Jaguar XJ (2010-2017)
- Jaguar XKR (2007-2015)
- Jaguar XK (2007-2015)
- Lincoln LS (2000-2006)
- Ford Thunderbird (2002-2005)
- Jaguar S-Type (2000-2003)
