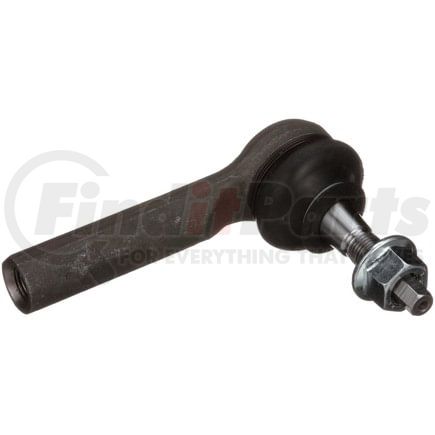

(888) 312-8812 Login SignupDELPHI TA5505 Tie Rod End
Tap to view 5 more
$2649
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TA5505 Part Description
DELPHI TA5505 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 144.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 44.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 103.20 MM |
| Housing Material | Steel |
| Tube Diameter | 0.906 IN |
| Tube Diameter | 23.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.45 lb |
| Cone Outside Diameter | 19.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.724 IN |
| Length - Stud Center to End | 120.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 19.50 MM |
| Stud Length | 19.50 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.768 IN |
| Stud Length | 0.768 IN |
| Cone Outside Diameter | 0.768 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604311868 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5505 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES800986 |
| Chrysler | 68156 902AA |
| MAS Industries | TO82475, TO82475XL |
| TRW | JTE1741 |
| Dorman | TO82475, TO82475XL |
| N/A | 68211693AB, 68263727AA, MS25628, GS25628, TXMS25628 |
DELPHI TA5505 Fits Vehicles
- Chrysler 300 (2011-2022)
- Dodge Charger (2011-2022)
- Dodge Challenger (2011-2018)
