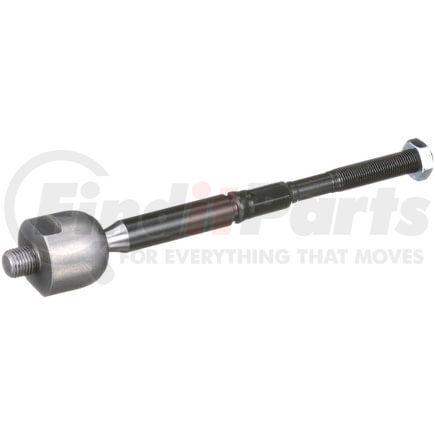

(888) 312-8812 Login SignupDELPHI TA5451 Tie Rod End
Tap to view 5 more
$3349
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 10
DELPHI TA5451 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5451 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 230.80 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 12.00 MM |
| Height | 37.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.630 IN |
| Tube Diameter | 16.00 MM |
| Adjustable | Yes |
| Greaseable | No |
| Weight | 0.95 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 7.717 IN |
| Length - Stud Center to End | 196.00 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| End 2 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604302231 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5451 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6969, 101-7812 |
| DORMAN | TI70210XL, TI70210 |
| Datsun/Nissan | 48521-3SG1A |
| Honda | 53540-SXS-A01, 53540-SXS-A02 |
| MAS Industries | TI70210XL, 534-849 |
| MEVOTECH | MS30736 |
| MOOG | EV800951 |
| MOOG Chassis Products | ES800303, EV800951 |
| N/A | D85211KE1A, D85213RA1A, MS30736, TI70210, GS30736, 612.42075, MS60617 |
| TRW | JAR830 |
DELPHI TA5451 Fits Vehicles
- Chevrolet City Express (2015-2018)
- Nissan LEAF (2014-2022)
- Nissan NV200 (2013-2021)
- Nissan Sentra (2013-2019)
