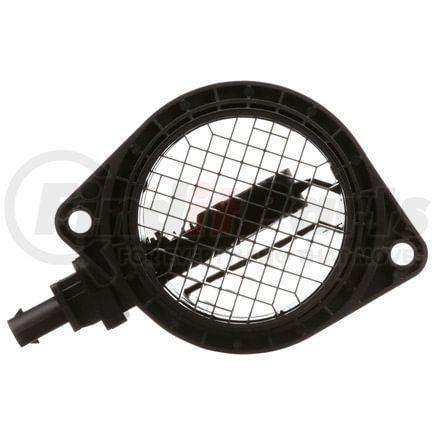

(888) 312-8812 Login SignupDELPHI AF10415 Mass Air Flow Sensor
$24349
Limited availability at this price!
In Stock
Get it by Friday, Jan 23
DELPHI AF10415 Part Description
DELPHI AF10415 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Premium |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 2.756 IN |
| Inlet Connection Diameter | 70 MM |
| Outlet Connection Diameter | 2.8 IN |
| Outlet Connection Diameter | 70 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Housing Material | Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 96 MM |
| Sensor Casing Width | 72 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 102.00 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 81 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 3.7 IN |
| Sensor Casing Width | 2.8 IN |
| Bolt Hole Center To Bolt Hole Center | 4.00 IN |
| Mounting Hole Diameter | 7 MM |
| Seal Outside Diameter | 3.1 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604300374 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10415 Cross References
| Brand | Part Number |
|---|---|
| BMW | 13 62 7 542 418 |
| Bosch | 0280218205 |
| CARDONE Reman | 74-10165 |
| N/A | 5S13441, MF21262, MF21262N |
| NAPA Reman Computers | XTP410165 |
| STANDARD IGNITION | MAS0344 |
| Spectra Premium | MA285 |
| Standard Motor Products | MAS0344 |
| VEMO | V20-72-5134-1 |
DELPHI AF10415 Fits Vehicles
- Mini Cooper Countryman (2011)
- Mini Cooper (2007-2011)
