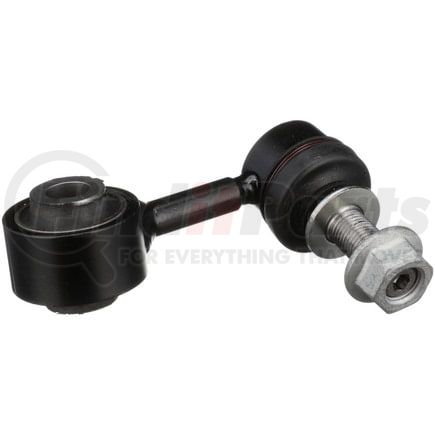

(888) 312-8812 Login SignupDELPHI TC5516 Suspension Stabilizer Bar Link
Tap to view 5 more
$4549
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 23
DELPHI TC5516 Part Description
Manufacturer
Product Description
Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5516 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left |
| Material | Ball Pin -Steel, Outer Sleeve - Steel |
| Bushing Outside Diameter | 1.476 IN |
| Bushing Outside Diameter | 37.50 MM |
| Bushing Color | Black |
| Length | 5.079 IN |
| Length | 129.00 MM |
| End 2 Type | Male - M14x1.5 |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Sleeve Inside Diameter | 0.563 IN |
| Sleeve Inside Diameter | 14.3 MM |
| Sleeve Length | 1.496 IN |
| Sleeve Length | 38 MM |
| Width | 44 MM |
| Width | 1.732 IN |
| Washers Included | Yes |
| Height | 3.504 IN |
| Height | 89.00 MM |
| Grade Type | Performance |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Weight | 1.08 lb |
| Bearing Material | Polyoxymethylene (POM) |
| Bushing Material | Rubber |
| Wrench Size | 6mm |
| Distance Between Mounting Holes | 85.00 MM |
| Locking Nuts Included | Yes |
| Bushing Inside Diameter | 0.945 IN |
| Bushing Inside Diameter | 24.00 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604300244 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC5516 Cross References
DELPHI TC5516 Fits Vehicles
- Toyota Sequoia (2008-2022)
- Toyota Tundra (2007-2021)
