DORMAN part description

Product Description

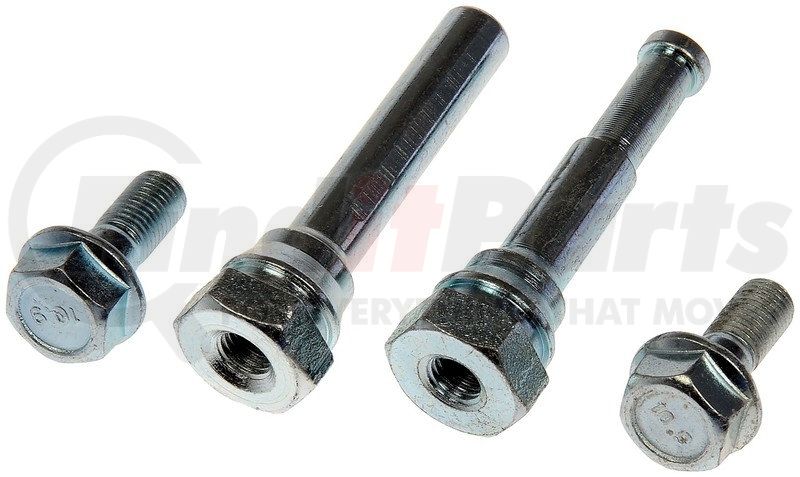

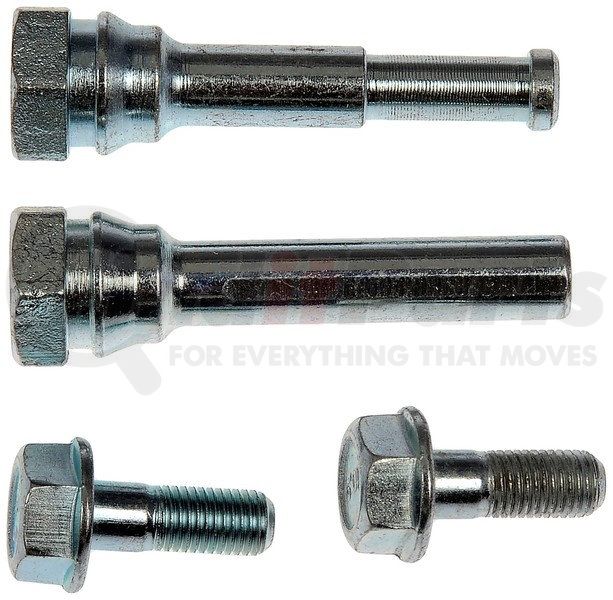

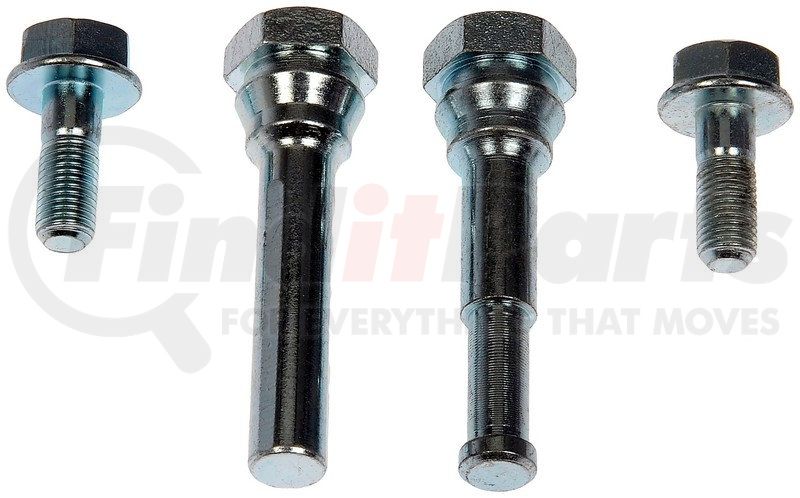

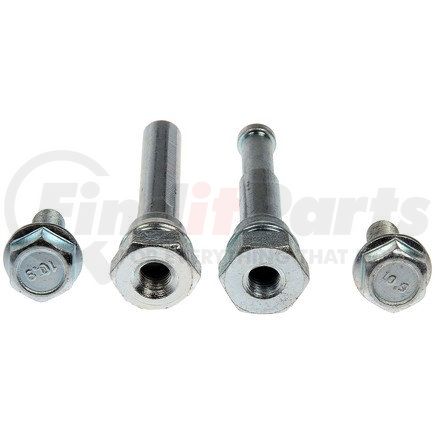

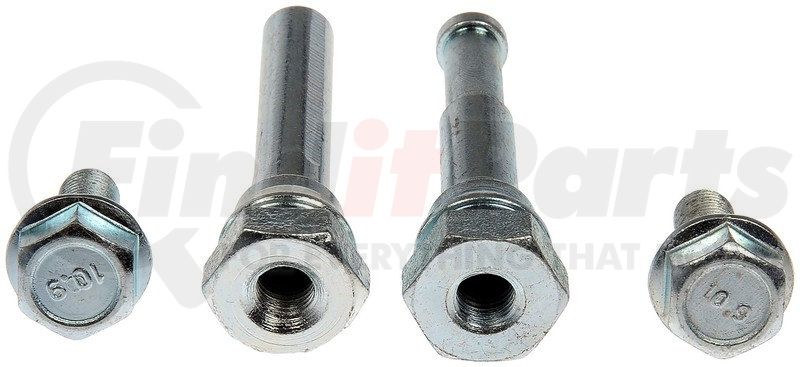

Disc Brake Caliper Guide Pin Kit

Application Summary

Cadillac ELR 2016, Chevrolet Cruze Limited 2016, Chevrolet Sonic 2016-13

Features & Benefits

  • Direct replacement - this disc brake caliper pin kit is designed to match the original hardware required to repair the disc brake caliper on specified vehicles
  • Sustituto directo: este kit de perno de mordaza de los frenos de disco está diseñado para empatar con el herraje original necesario para reparar la mordaza de los frenos de disco en vehículos especificados
  • Ideal solution - this kit is a reliable replacement for original components that have failed due to fatigue
  • Solución ideal: este kit es un sustituto confiable para componentes originales que fallaron debido a la fatiga
  • Durable construction - this kit is made from quality components to ensure reliable performance and a long service life
  • Construcción duradera: este kit está hecho de componentes de calidad para garantizar un rendimiento confiable y una larga vida útil
  • Trustworthy quality - backed by team of product experts in the United States and more than a century of automotive experience
  • Calidad confiable: respaldada por un equipo de expertos de producto en Estados Unidos y más de un siglo de experiencia automotriz

Disc, Brake, Caliper, Guide, Pin, Kit, Kits

Product Attributes

Bolt Thread Type Coarse
Bolts Included Yes
Pin Material Steel
Pin Outside Diameter 9.85 MM
Caliper Grease Included No
Pin 1 Length 64 MM
Pin 2 Length 64 MM
Pin Beveled Ends Yes
Bolt Thread Diameter M8 X 1
Boot Included No
Package Contents 2 Guide Pins; 2 Lock Bolts
Pin Count 2

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708300050
UPC 00889245396099
VMRS Code 013001130
UNSPSC 25171718

Part Interchanges

Fits Vehicles

  • Chevrolet Cruze Limited (2016)
  • Cadillac ELR (2016)
  • Chevrolet Sonic (2013-2016)
