CENTRIC 320.51050 - GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

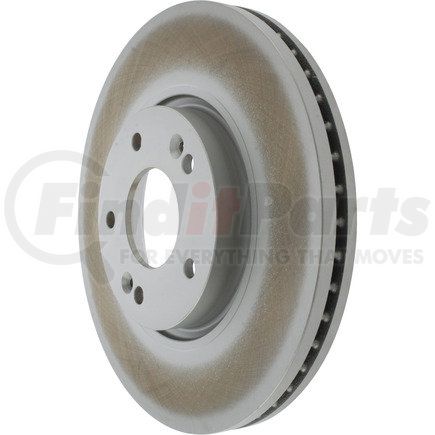

GCX Rotor with Partial Coating
Application Summary
2012 - 2016 Kia Sportage
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Centric; Centric Parts; GxC Brake; GxC Rotor; Brake Rotor
Product Attributes
| Discard Thickness | 1.039 IN |
| Discard Thickness | 26.40 MM |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28.00 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Outside Diameter | 11.811 IN |
| Outside Diameter | 300.00 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69.00 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.30 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.484 IN |
| Stud/Lug Hole Diameter | 12.30 MM |
| Disc Mounting [cntrc] | Floating |
| Height | 47.30 |
| Hub Hole/Whl Reg [cntrc] | 69 MM |
| Misc Holes [cntrc] | 2 |
| Solid / Vented | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 9.340 KG |
| Weight [cntrc] | 20.550 LB |
| Disc Mounting | Floating |
| Hub Hole Diameter | 69 MM |
| Misc Holes | 2 |
| Vane Style | Straight |
| Weight | 9.340 KG |
| Weight | 20.550 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00889590390834 |
