CENTRIC 320.04002 Part Description
Manufacturer
Product Description

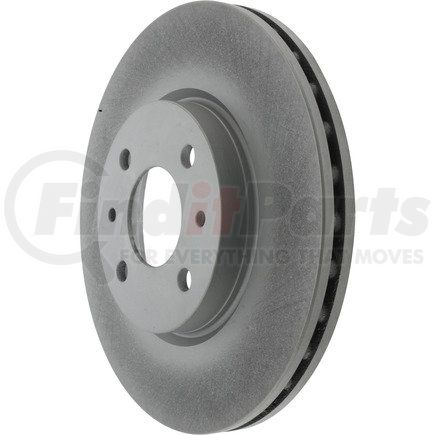

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.04002 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Pillar |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 11.600 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.270 |
| Discard Thickness | 0.795 IN |
| Discard Thickness | 20.200 MM |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 40.500 MM |
| Overall Height | 1.594 IN |
| Outside Diameter | 257.300 MM |
| Outside Diameter | 10.130 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.323 IN |
| Center Hole Diameter | 59.000 MM |
| Mounting Bolt Hole Circle Diameter | 98.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.858 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 13.300 MM |
| Stud/Lug Hole Diameter | 0.524 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590386349 |
CENTRIC 320.04002 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980950FZN, 980950R |
