CENTRIC 320.46062 Part Description
Manufacturer
Product Description

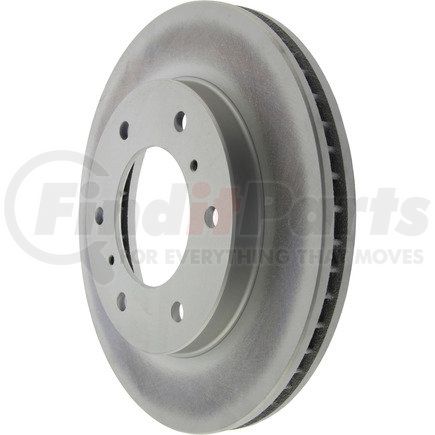

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.46062 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.590 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 14.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 24.400 MM |
| Discard Thickness | 0.961 IN |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 46.300 MM |
| Overall Height | 1.823 IN |
| Outside Diameter | 290.000 MM |
| Outside Diameter | 11.417 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.701 IN |
| Center Hole Diameter | 94.000 MM |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590390186 |
CENTRIC 320.46062 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 96975R |
CENTRIC 320.46062 Cross References
We have 1 alternatives for the 320.46062 by CENTRIC:
