CENTRIC 320.42004 Part Description
Manufacturer
Product Description

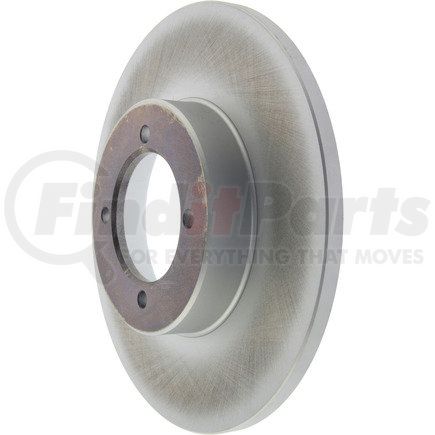

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.42004 Specifications
Product Attributes
| Weight [cntrc] Kgs | 5.550 |
| Weight [cntrc] Lbs | 12.200 |
| Disc Mounting [cntrc] | Behind the Hub |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 10.500 MM |
| Discard Thickness | 0.413 IN |
| Nominal Thickness | 0.492 IN |
| Nominal Thickness | 12.500 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 43.500 MM |
| Overall Height | 1.713 IN |
| Outside Diameter | 271.000 MM |
| Outside Diameter | 10.669 IN |
| Mounting Bolt Hole Quantity | 4 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 3.189 IN |
| Center Hole Diameter | 81.000 MM |
| Mounting Bolt Hole Circle Diameter | 103.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.055 IN |
| Mounting Bolt Hole Diameter | 10.500 MM |
| Mounting Bolt Hole Diameter | 0.413 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590388923 |
CENTRIC 320.42004 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 9234R |
