(888) 312-8812 Login SignupCENTRIC 320.63085 Centric GCX Rotor with Partial Coating
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.63085 Part Description
Manufacturer
Product Description

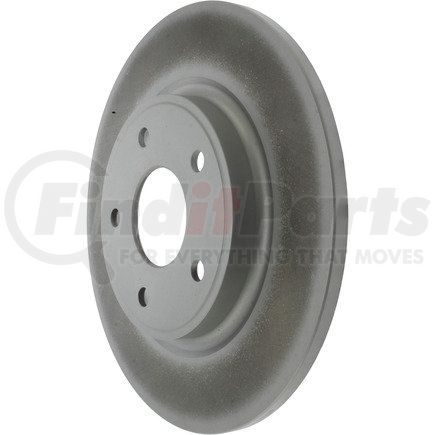

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.63085 Specifications
Product Attributes
| Hat Id [cntrc] In | 6.480 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 14.200 |
| Weight [cntrc] Kgs | 6.440 |
| Hat Id [cntrc] Mm | 164.600 |
| Discard Thickness | 10.400 MM |
| Discard Thickness | 0.409 IN |
| Nominal Thickness | 12.000 MM |
| Nominal Thickness | 0.472 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 35.200 MM |
| Overall Height | 1.386 IN |
| Outside Diameter | 12.598 IN |
| Outside Diameter | 320.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 2.854 IN |
| Center Hole Diameter | 72.500 MM |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.400 MM |
| Stud/Lug Hole Diameter | 0.567 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590392333 |
CENTRIC 320.63085 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 782040, 782040FZN, 782040R |
CENTRIC 320.63085 Cross References
We have 3 alternatives for the 320.63085 by CENTRIC:
