CENTRIC 320.49009 Part Description
Manufacturer
Product Description

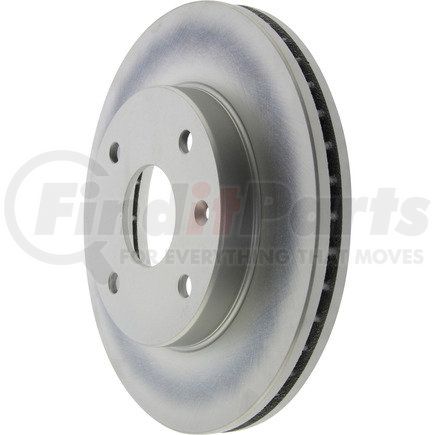

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.49009 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.450 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 1 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 12.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22.000 MM |
| Nominal Thickness | 23.900 MM |
| Nominal Thickness | 0.941 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 47.300 MM |
| Overall Height | 1.862 IN |
| Outside Diameter | 256.000 MM |
| Outside Diameter | 10.079 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.370 IN |
| Center Hole Diameter | 60.200 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590390476 |
CENTRIC 320.49009 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980338, 980338FZN, 980338R |
CENTRIC 320.49009 Cross References
We have 3 alternatives for the 320.49009 by CENTRIC:
