RAYBESTOS part description
Product Description

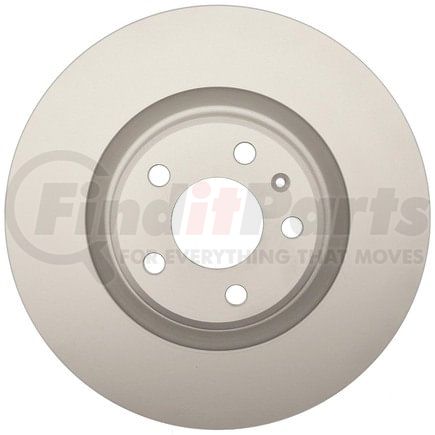

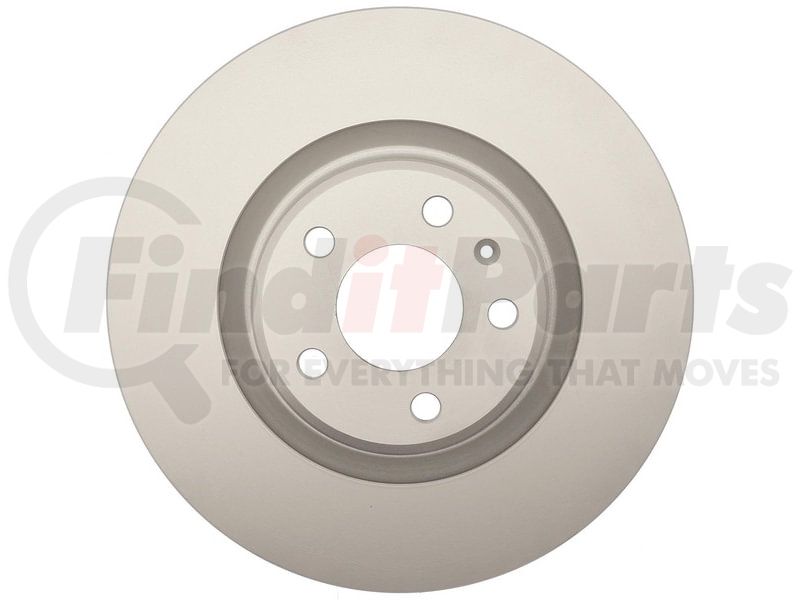

Raybestos Element3 Coated Brake Rotor
Application Summary
2022-2018 Audi Q5 Front, 2023-2016 Audi A4 Quattro Front, 2018-2017 Audi A4 Front, 2022-2018 Audi A5 Quattro Front, 2022-2021 Audi Q5 Sportback Front, 2022-2018 Audi A5 Sportback Front, 2022-2019 Audi A6 Quattro Front
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.142 IN |
| Inside Diameter | 206.8 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.598 IN |
| Mounting Bolt Hole Diameter | 15.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.177 IN |
| Nominal Thickness | 29.9 MM |
| Outside Diameter | 13.307 IN |
| Outside Diameter | 338 MM |
| Overall Height | 2.248 IN |
| Overall Height | 57.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213308945 |
Part Interchanges
RAYBESTOS 982115FZN Cross Reference
We have 9 alternatives for the 982115FZN by RAYBESTOS:
Fits Vehicles
- Audi A6 (2021-2023)
- Audi A5 (2018-2019, 2021-2023)
- Audi Q5 Sportback (2021-2023)
- Audi A6 Quattro (2019-2023)
- Audi A5 Sportback (2018-2023)
- Audi A5 Quattro (2018-2023)
- Audi Q5 (2018-2023)
- Audi A4 allroad (2017-2023)
- Audi A4 Quattro (2016-2023)
- Audi A4 (2017-2018, 2021-2023)
