RAYBESTOS part description

Product Description

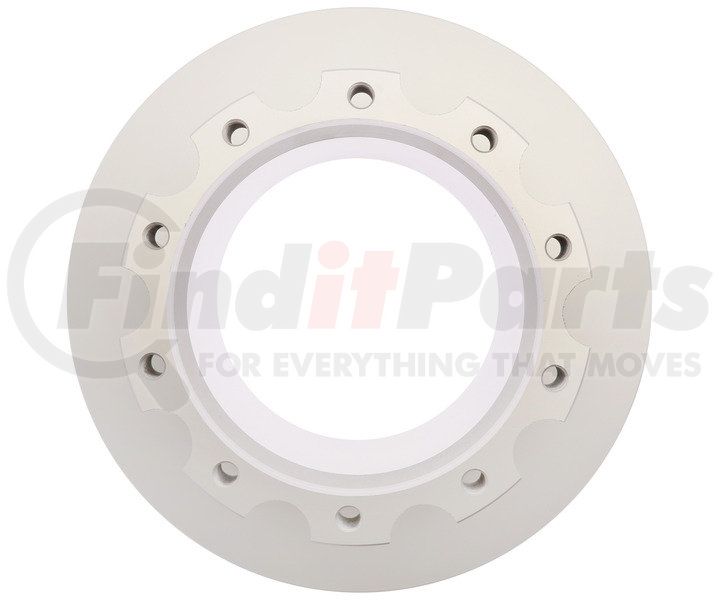

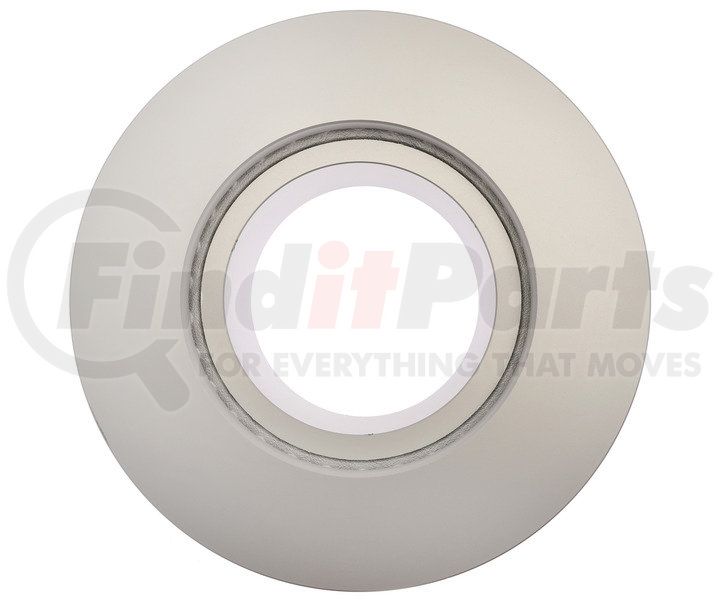

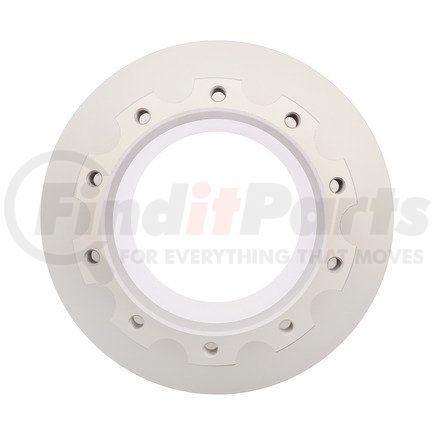

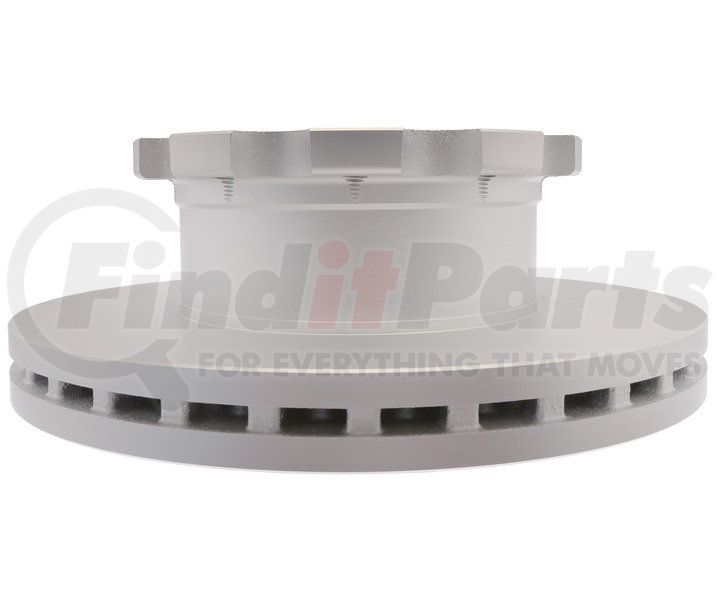

Raybestos Specialty - Truck Coated Brake Rotor

Application Summary

2021-2008 Freightliner Cascadia Front, 2021-2008 Freightliner Cascadia Rear, 2020-2005 Freightliner M2 106 Front, 2020-2005 Freightliner M2 106 Rear, 2019-2005 Kenworth T800 Front, 2019-2005 Kenworth T800 Rear

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 8.161 IN
Center Hole Diameter 207.3 MM
9565 Conventional
Discard Thickness 1.77 IN
Discard Thickness 44.95 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 9.843 IN
Mounting Bolt Hole Circle Diameter 250 MM
Mounting Bolt Hole Diameter 0.625 IN
Mounting Bolt Hole Diameter 15.9 MM
Mounting Bolt Hole Quantity 10
Nominal Thickness 1.768 IN
Nominal Thickness 44.9 MM
Outside Diameter 16.929 IN
Outside Diameter 430 MM
Overall Height 5.906 IN
Overall Height 150 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 10
Surface Type Smooth
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00887213309324

Part Interchanges

RAYBESTOS 8551 Cross Reference

We have 4 alternatives for the 8551 by RAYBESTOS:

Fits Vehicles

  • International LT (2020)
  • Freightliner 122SD (2014-2019)
  • Kenworth W990 (2019-2020)
  • International HV507 (2019-2022)
  • International HV513 (2019-2022)
  • International HV613 (2019-2022)
  • International HV607 (2019-2022)
  • Mack Pinnacle (2018-2020)
  • International RH613 (2018-2020)
  • International HX520 (2018-2022)
  • International WorkStar 7400 (2015-2020)
  • International WorkStar 7300 (2015-2020)
  • International Durastar (2015-2020)
  • International TranStar (2015-2019)
  • Peterbilt 520 (2018-2020)
  • Kenworth K370 (2014-2019)
  • Kenworth K270 (2014-2019)
  • International LT625 (2017-2022)
  • International HX620 (2017-2022)
  • International HX615 (2017-2022)
  • International HX515 (2017-2021)
  • Freightliner M2 (2005-2020)
  • Freightliner XBA (2015-2016, 2018-2019)
  • Freightliner S2C (2013-2022)
  • Freightliner S2G (2014-2022)
  • International ProStar (2017-2020)
  • International LoneStar (2015-2020)
  • Freightliner XC Straight Rail (2005-2019)
  • Freightliner XC Raised Rail (2006-2019)
  • Freightliner XC Modular Rail (2008-2020)
  • Freightliner XC Lowered Rail (2007-2018)
  • Freightliner XB Straight Rail (2008-2022)
  • Freightliner XC Formed Rail (2005-2007)
  • Freightliner XB Line (2009-2015)
  • Freightliner M2 100 (2005-2010)
  • Peterbilt 587 (2011-2017)
  • Peterbilt 389 (2008-2020)
  • Peterbilt 579 (2013-2020)
  • Kenworth T880 (2011-2019)
  • Kenworth T680 (2011-2019)
  • Peterbilt 387 (2005-2011)
  • Kenworth T2000 (2005-2011)
  • Peterbilt 388 (2008-2015)
  • Peterbilt 386 (2006-2015)
  • Peterbilt 367 (2008-2020)
  • Kenworth T660 (2008-2019)
  • Peterbilt 567 (2014-2020)
  • Peterbilt 382 (2011-2017)
  • Peterbilt 384 (2008-2016)
  • Peterbilt 365 (2008-2020)
  • Kenworth W900 (2005-2019)
  • Kenworth T800 (2005-2019)
  • Peterbilt 348 (2010-2020)
  • Peterbilt 337 (2010-2020)
  • Kenworth T370 (2014-2019)
  • Freightliner B2 (2005-2019)
  • Freightliner Century Class (2005-2011)
  • Freightliner 114SD (2012-2019)
  • Freightliner 108SD (2012-2019)
  • Freightliner Coronado (2005-2020)
  • Freightliner Cascadia (2008-2021)
  • Freightliner XC (2005)
  • Freightliner Columbia (2005-2020)
  • Freightliner Business Class M2 (2005-2012)
  • Freightliner M2 112 (2005-2020)
  • Freightliner M2 106 (2005-2020)
  • Motor Coach Industries J3500 (2019-2020)
  • Motor Coach Industries J4500 (2014-2020)
  • Pierce Mfg. Inc. Enclosed Cab (2015-2020)
  • Blue Bird Vision School Bus (2005-2020)
  • Blue Bird All American RE (2005-2020)
  • Blue Bird All American FE (2005-2020)
  • Spartan Motors Metro Star X (2013-2016)
  • Spartan Motors Gladiator (2005-2018)
  • Spartan Motors Furion (2009-2011)
  • Spartan Motors Force (2012)
  • Spartan Motors Diamond (2005-2008)
  • Spartan Motors Metro Star (2005-2018)
  • Motor Coach Industries D4505 (2006-2019)
  • Motor Coach Industries D4005 (2005-2009, 2011, 2013-2017)
  • Pierce Mfg. Inc. Velocity (2008-2011, 2013-2014)
  • Pierce Mfg. Inc. Quantum (2005-2011, 2013-2014)
  • Pierce Mfg. Inc. Lance (2005-2008)
  • Pierce Mfg. Inc. Impel (2008-2011, 2013-2014)
  • Pierce Mfg. Inc. Dash CF (2013-2014)
  • Pierce Mfg. Inc. Dash (2005-2009)
  • Pierce Mfg. Inc. Arrow XT (2005-2011, 2013-2015)
  • Pierce Mfg. Inc. Enforcer (2005-2011)
  • Pierce Mfg. Inc. Saber (2005-2011, 2013-2014)
  • Pierce Mfg. Inc. Custom (2005-2012, 2014-2015)
