Delphi TA3175 - Tie Rod End
$5349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description

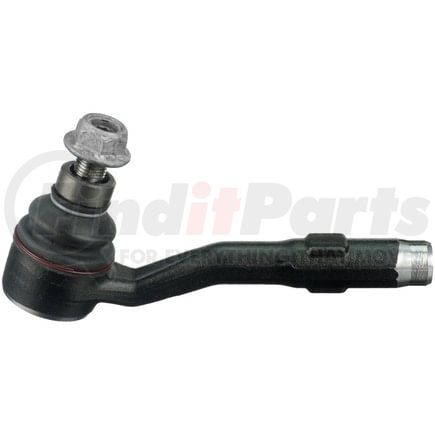

Tie Rod End
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 45 MM |
| Type | Bent |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 86.50 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | Yes |
| Weight | 1.46 lb |
| Cone Outside Diameter | 18.30 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 6.299 IN |
| Length - Stud Center to End | 160.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.630 IN |
| End 1 Thread Diameter | 16.00 MM |
| Shank Length | 18.30 MM |
| Stud Length | 18.30 MM |
| Mounting Hardware Included | Yes |
| Shank Length | 0.720 IN |
| Stud Length | 0.720 IN |
| Cone Outside Diameter | 0.720 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604284841 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- BMW 535i xDrive (2009-2010)
- BMW 528i xDrive (2009-2010)
- BMW 535xi (2008)
- BMW 528xi (2008)
- BMW 525xi (2006-2007)
- BMW 530xi (2006-2007)
