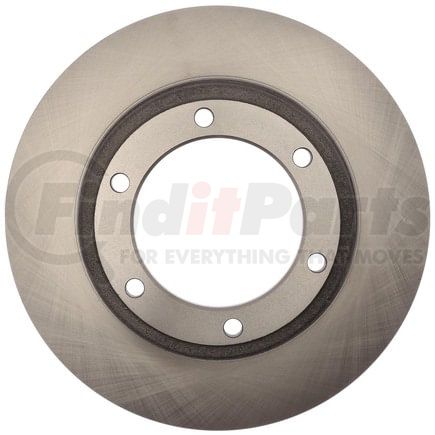

RAYBESTOS 980970R Raybestos R-Line Brake Rotor

★★★★★ (0)

$155.62

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 980970R Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos R-Line Brake Rotor

Application Summary

2020-2003 Freightliner M2 106 Front, 2020-2003 Freightliner M2 106 Rear, 2019-2005 Freightliner B2 Front, 2019-2005 Freightliner B2 Rear, 1997-1990 International 3800 Front, 1997-1990 International 3800 Rear

Features & Benefits

  • OE Fit, Form, and Function
  • Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
  • SAE Standard
  • R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
  • Low Initial Lateral Runout and Thickness Variation
  • R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
  • Mill Balanced Edges
  • R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.

RAYBESTOS 980970R Specifications

Product Attributes

ABS Tone Ring IncludedYes
Center Hole Diameter5.395 IN
Center Hole Diameter137.05 MM
Conventional Or Drum-In-Hat Type RotorConventional
Discard Thickness1.32 IN
Discard Thickness33.55 MM
Harmonize Code8708.30.5030
Inside Diameter10.118 IN
Inside Diameter257 MM
Mounting Bolt Hole Circle Diameter6.75 IN
Mounting Bolt Hole Circle Diameter171.45 MM
Mounting Bolt Hole Diameter0.573 IN
Mounting Bolt Hole Diameter14.55 MM
Mounting Bolt Hole Quantity6
Nominal Thickness1.437 IN
Nominal Thickness36.5 MM
Outside Diameter15 IN
Outside Diameter381 MM
Overall Height3.504 IN
Overall Height89 MM
Salability RestrictionsNo
Solid Or Vented Type RotorVented
Stud/Lug Hole Quantity6
Surface TypeSmooth
UNSPSC Code25171715

Additional Information

Country of Origin (Primary)CN
Canadian Harmonizing Tariff Code8708309990
Harmonized Tariff Code (HTS)8708305030
UPC00887213286915

RAYBESTOS 980970R Cross References

BrandPart Number
AUTOXTRAAX901550
BRAKEBEST8549RGS, 980970
CENTRIC120.84002, 120.84004, 120.84005, 121.84002, 121.84004, 121.84005, 120.83010
Centric Parts120.84002, 120.84004, 120.84005, 121.84002, 121.84004, 121.84005
DURA CORPBR5657, BR901550
DuraGoBR901550
GUNITED6194M
GuniteD6194
INTERNATIONAL HARVESTER (IHC)D6194M
International Harvester IHCD6194M
PEP BOYS901550G
Qualis41319

RAYBESTOS 980970R Fits Vehicles

  • Freightliner B2 (2005-2019)
  • Freightliner Business Class M2 (2004-2012)
  • Freightliner FL50 (1998-2005)
  • Freightliner FL60 (1998-2005)
  • Freightliner FL70 (1998-2005)
  • Freightliner FS65 (1996-2008)
  • Freightliner M2 (2005-2020)
  • Freightliner M2 100 (2003-2010)
  • Freightliner M2 106 (2003-2020)
  • Freightliner M2 112 (2003-2020)
  • Freightliner M2 T (2006-2010)
  • Freightliner MB Line (1995-2022)
  • Freightliner MB60 (1992-1995)
  • Freightliner MB70 (1992-1995)
  • Freightliner MC Line (2001, 2005-2018)
  • Freightliner MCL (2011, 2014)
  • Freightliner MT35 (1997-2009)
  • Freightliner MT45 (1998-2019)
  • Freightliner MT55 (1999-2019)
  • International 3000 (1996-1997)
  • International 3000FE (1997)
  • International 3000RE (1996-1997)
  • International 3400 (1996-1997)
  • International 3600 (1992-1997)
  • International 3700 (1990-1994)
  • International 3800 (1990-1997)
  • International 3900FC (1991-1994, 1996)
  • International 7100 (1990-1995)
  • Fleetwood Bounder Classic (2013)
