Raybestos 8540R - Raybestos R-Line Brake Rotor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
RAYBESTOS part description
Product Description

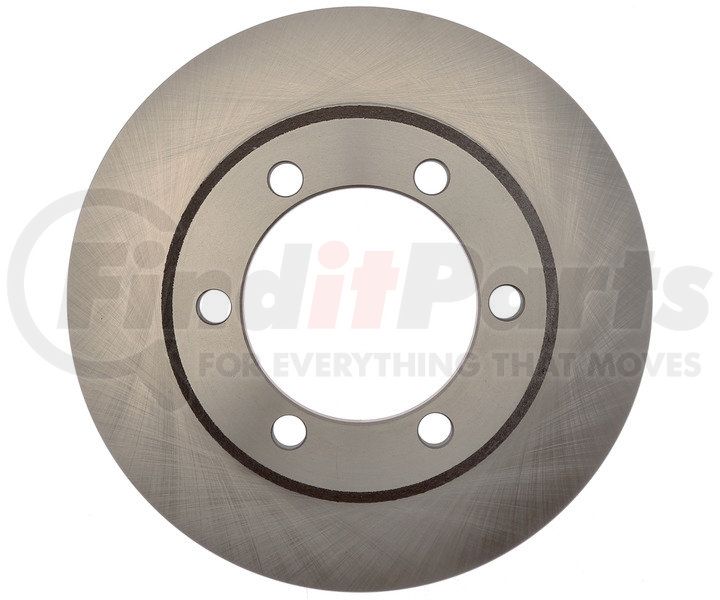

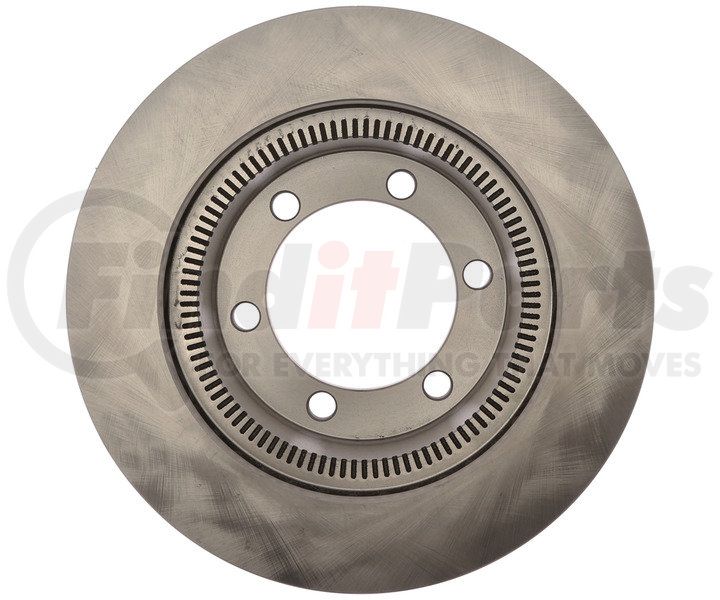

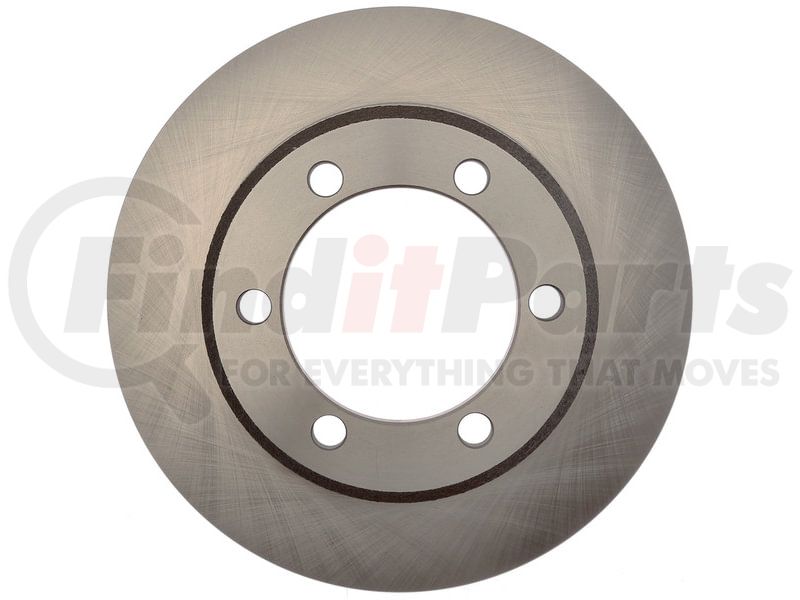

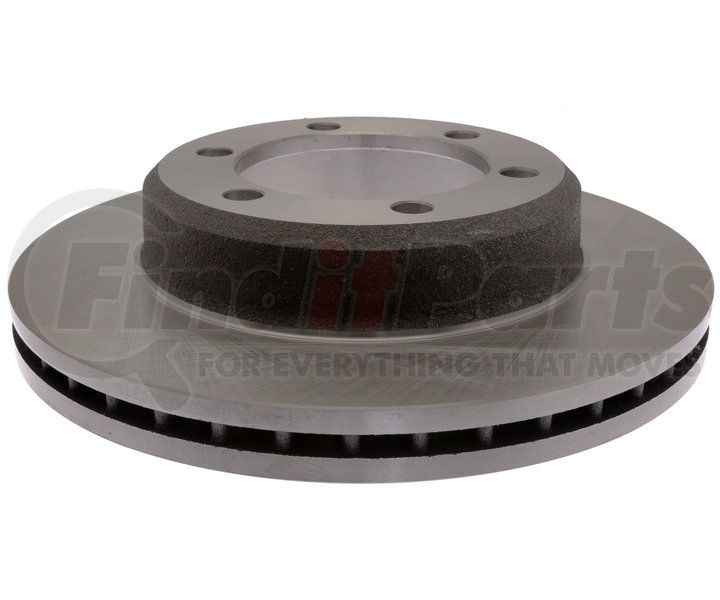

Raybestos R-Line Brake Rotor
Application Summary
2020-2003 Freightliner M2 106 Front, 2020-2003 Freightliner M2 106 Rear, 2019-2005 Freightliner B2 Front, 2019-2005 Freightliner B2 Rear, 2020-1998 Freightliner MT45 Front, 2020-1998 Freightliner MT45 Rear
Product Attributes
| ABS Tone Ring Included | Yes |
| Bearings Included | No |
| Center Hole Diameter | 5.402 IN |
| Center Hole Diameter | 137.2 MM |
| 9565 | Conventional |
| Discard Thickness | 1.319 IN |
| Discard Thickness | 33.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 10.118 IN |
| Inside Diameter | 257 MM |
| Mounting Bolt Hole Circle Diameter | 6.75 IN |
| Mounting Bolt Hole Circle Diameter | 171.45 MM |
| Mounting Bolt Hole Diameter | 0.76 IN |
| Mounting Bolt Hole Diameter | 19.3 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.441 IN |
| Nominal Thickness | 36.6 MM |
| Outside Diameter | 15 IN |
| Outside Diameter | 381 MM |
| Overall Height | 3.5 IN |
| Overall Height | 88.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213286441 |
Part Interchanges
- International Harvester (IHC) 1646770C2
- Workhorse W8000280
- Workhorse W8002188
- Freightliner Custom Chassis GUND6194M
- Gunite D6194
- Wagner Brake BD126392
- Webb 54770P
- Webb 54770P65
- Performance Friction 381.089.30
- BrakeBest 8540
- BrakeBest 8540RGS
- Centric Parts 120.83015
- Centric Parts 120.83015CRY
- Centric Parts 121.83015
- Centric Parts 320.83015
- WABCO - Archived PS126392
- Dura Corp BR5618
- Winhere 4421315
- Promax 14-5618
- Centric Parts 120.83010
- Centric Parts 121.83010
- DuraGo BR5606
- Qualis 41296
- Qualis 5606
RAYBESTOS 8540R Cross Reference
We have 21 alternatives for the 8540R by RAYBESTOS:
- GUNITE D6194
- PERFORMANCE FRICTION 381.089.30
- WABCO PS126392
- WEBB 54770P
- WEBB 54770P65
- BRAKEBEST 8540
- BRAKEBEST 8540RGS
- CENTRIC 120.83010
- CENTRIC 120.83015
- CENTRIC 120.83015CRY
- CENTRIC 121.83010
- CENTRIC 121.83015
- CENTRIC 320.83015
- DURA CORP BR5618
- FREIGHTLINER CUSTOM CHASSIS GUND6194M
- INTERNATIONAL HARVESTER (IHC) 1646770C2
- PROMAX 14-5618
- WAGNER BRAKE BD126392
- WINHERE 4421315
- WORKHORSE W8000280
- WORKHORSE W8002188
Fits Vehicles
- Freightliner M2 T (2006-2010)
- Freightliner B2 (2005-2019)
- Freightliner MT45 (1998-2020)
- Freightliner M2 (2005-2020)
- Freightliner M2 100 (2003-2010)
- Freightliner Business Class M2 (2004-2012)
- International 7100 (1990-1995)
- International 4100 (2006-2008)
- Freightliner M2 112 (2003-2020)
- Freightliner MT35 (1997-2009)
- Freightliner M2 106 (2003-2020)
- Fleetwood Bounder Classic (2010, 2013)
- Fleetwood Bounder (2010)
- Workhorse Custom Chassis W52 (2002-2005)
- Workhorse Custom Chassis W22 (2001-2011)
- Blue Bird TC1000 (1997-2000)
- Blue Bird TC2000 (1992-2003)
- Workhorse W22 (2001-2009)
- Workhorse W21 (2007-2009)
- Workhorse W20 (2001-2009)
