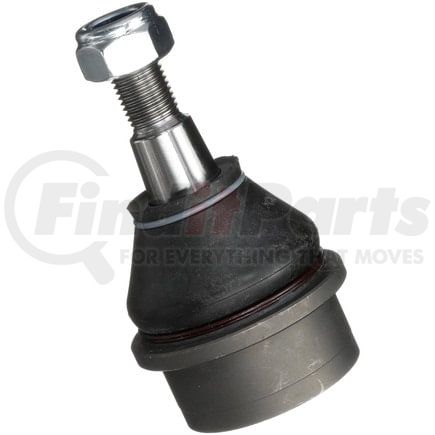

(888) 312-8812 Login SignupDELPHI TC5076 Ball Joint
Tap to view 5 more
$1999
Limited availability at this price!
In Stock
Get it by Friday, Feb 20
DELPHI TC5076 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5076 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.362 IN |
| Maximum Outside Diameter | 60.00 MM |
| Color | Gray |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 60 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.016 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.043 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.677 IN |
| Stud Tapered End 2 Diameter | 17.2 MM |
| Stud Tapered End 1 Diameter | 0.843 IN |
| Stud Tapered End 1 Diameter | 21.4 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 4.020 IN |
| Length | 102.00 MM |
| Stud Thread Diameter | 0.55 IN |
| Height | 102.01 MM |
| Stud Thread Length | 26.49 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604283394 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5076 Cross References
DELPHI TC5076 Fits Vehicles
- Jeep Liberty (2008-2012)
- Dodge Nitro (2007-2011)
- Jeep Commander (2006-2010)
- Jeep Grand Cherokee (2005-2010)
