STOPTECH 227.66005L Part Description
Manufacturer
Product Description

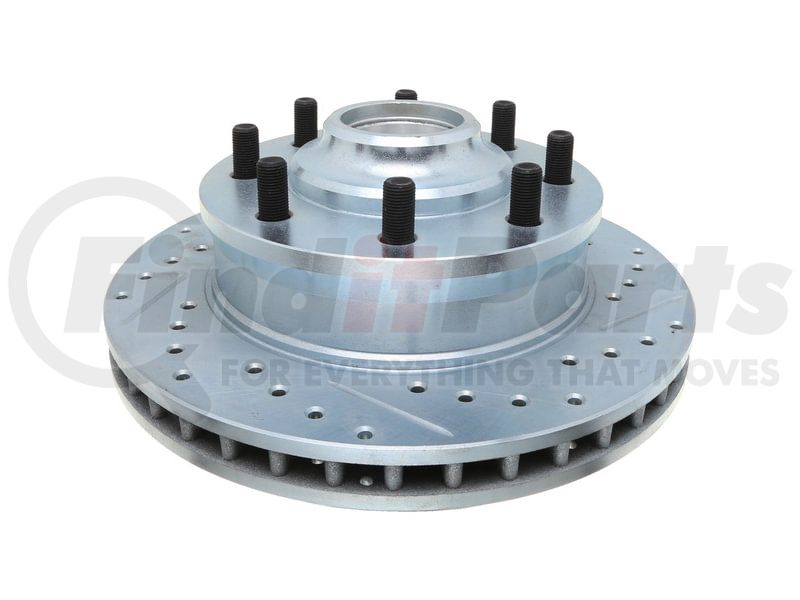

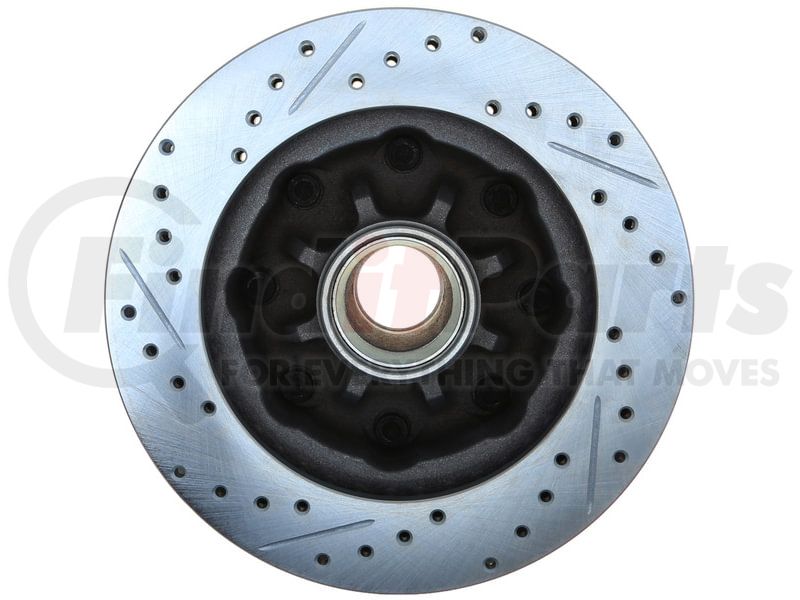

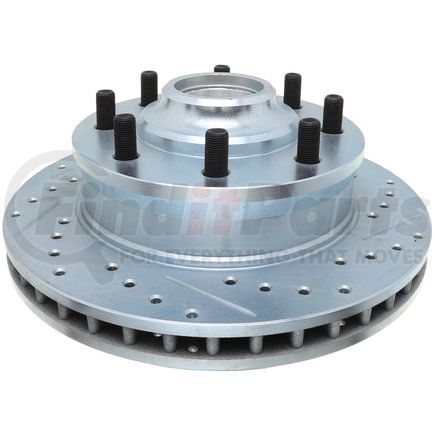

Select Sport Drilled and Slotted Brake Rotor, Front Left
Application Summary
1975 - 1986 Chevrolet C20, 1971 - 1974 Chevrolet C20 Pickup, 1971 - 1986 Chevrolet C20 Suburban, 1975 - 1980 Chevrolet C30, 1971 - 1974 Chevrolet C30 Pickup, 1975 - 1992 Chevrolet G30, 1971 - 1974 Chevrolet G30 Van, 1975 - 1989 Chevrolet P20, 1971 - 1974 Chevrolet P20 Van, 1975 - 1995 Chevrolet P30, 1971 - 1974 Chevrolet P30 Van, 1987 - 1988 Chevrolet R20, 1987 - 1988 Chevrolet R20 Suburban, 1989 - 1989 Chevrolet R2500, 1989 - 1991 Chevrolet R2500 Suburban, 1975 - 1978 GMC C25, 1975 - 1978 GMC C25 Suburban, 1971 - 1974 GMC C25/C2500 Pickup, 1971 - 1974 GMC C25/C2500 Suburban, 1979 - 1986 GMC C2500, 1979 - 1986 GMC C2500 Suburban, 1975 - 1978 GMC C35, 1971 - 1974 GMC C35/C3500 Pickup, 1979 - 1980 GMC C3500, 1975 - 1978 GMC G35, 1971 - 1974 GMC G35/G3500 Van, 1979 - 1992 GMC G3500, 1975 - 1978 GMC P25, 1971 - 1974 GMC P25/P2500 Van, 1979 - 1989 GMC P2500, 1975 - 1978 GMC P35, 1971 - 1974 GMC P35/P3500 Van, 1979 - 1995 GMC P3500, 1987 - 1989 GMC R2500, 1987 - 1991 GMC R2500 Suburban
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled & Slotted for increased bite; improved looks and better performance; Zinc coated corrosion protection
StopTech; Stop-Tech; Stop Tech; StopTech Select Sport; Centric; Centric Parts; Centricparts.Com; StopTech Select Sport Brakes; Rotor; Rotors; Brake Rotor; Brake Rotors; Break Rotor; Break Rotors; Brake Disc; Brake Discs; Break Disc; Break Discs; Disc Brake; StopTech Sport Brake Rotors; Zinc Coating; Zinc-Coating; Zinc Coated; StopTech Sport; StopTech Sport Brake Rotor; Drilled and Slotted Rotor; Drilled and Slotted Rotors; Drilled/Slotted Rotor; Drilled/Slotted Rotors; Drilled; Slotted Rotor; Drilled; Slotted Rotors; StopTech Brake Rotors
STOPTECH 227.66005L Specifications
Product Attributes
| Discard Thickness | 1.215 IN |
| Discard Thickness | 30.860 MM |
| Nominal Thickness | 1.291 IN |
| Nominal Thickness | 32.800 MM |
| Stud Thread Diameter | 0.563 IN |
| Stud Thread Diameter | 14.300 MM |
| Outside Diameter | 12.500 IN |
| Outside Diameter | 317.500 MM |
| Height | 4.764 IN |
| Height | 121.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Slotted X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Center Hole Diameter | 4.591 IN |
| Center Hole Diameter | 116.60 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Mounting Bolt Hole Circle Diameter | 165.10 MM |
| Stud/Lug Hole Quantity | 8 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Bearing # [cntrc] | 410.91035 |
| Inner Seal # [cntrc] | 417.660 |
| Misc Holes [cntrc] | 8 |
| Outer Bearing # [cntrc] | 415.66 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 17.550 KG |
| Weight [cntrc] | 38.600 LB |
| Disc Mounting | Hub & Rotor |
| Inner Bearing | 410.91035 |
| Inner Seal | 417.660 |
| Misc Holes | 8 |
| Outer Bearing | 415.66 |
| Vane Style | Straight |
| Weight | 17.550 KG |
| Weight | 38.600 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890733102 |
STOPTECH 227.66005L Fits Vehicles
- GMC P35/P3500 Van (1971-1974)
- GMC P25/P2500 Van (1971-1974)
- GMC G35/G3500 Van (1971-1974)
- GMC C35/C3500 Pickup (1971-1974)
- GMC C25/C2500 Suburban (1971-1974)
- GMC C25/C2500 Pickup (1971-1974)
- Chevrolet P30 Van (1971-1974)
- Chevrolet P20 Van (1971-1974)
- Chevrolet G30 Van (1971-1974)
- Chevrolet C30 Pickup (1971-1974)
- Chevrolet C20 Pickup (1971-1974)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC P3500 (1979-1995)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1989)
- GMC P25 (1975-1978)
- GMC G3500 (1979-1992)
- GMC G35 (1975-1978)
- GMC C3500 (1979-1980)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1986)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986)
- GMC C25 (1975-1978)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R2500 (1989)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet P30 (1975-1995)
- Chevrolet P20 (1975-1989)
- Chevrolet G30 (1975-1992)
- Chevrolet C30 (1975-1980)
- Chevrolet C20 Suburban (1971-1986)
- Chevrolet C20 (1975-1986)
