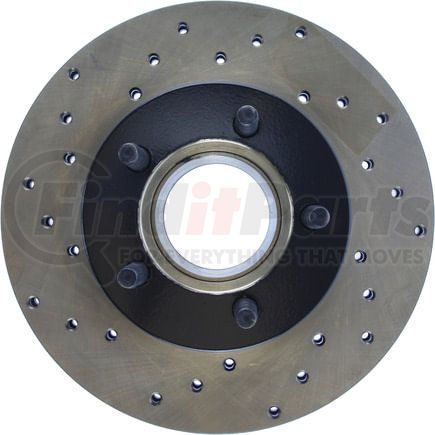

StopTech 128.65035CR - Sport Cryo Cross Drilled Brake Rotor, Front Right
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
STOPTECH part description
Product Description
Sport Cryo Cross Drilled Brake Rotor, Front Right
Application Summary
1993 - 1994 Ford Explorer, 1993 - 1994 Mazda Navajo
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and service life
Sport Drilled Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor; Stoptech Drilled/Slotted Rotor
Product Attributes
| Discard Thickness | 0.811 IN |
| Discard Thickness | 20.600 MM |
| Nominal Thickness | 0.870 IN |
| Nominal Thickness | 22.100 MM |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Stud Thread Diameter | 12.700 MM |
| Outside Diameter | 10.866 IN |
| Outside Diameter | 276.000 MM |
| Height | 2.492 IN |
| Height | 63.300 MM |
| ABS Tone Ring Included | No |
| Surface Type | X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.30 MM |
| Stud/Lug Hole Quantity | 5 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Bearing # [cntrc] | 410.91037 |
| Inner Seal # [cntrc] | 417.680 |
| Misc Holes [cntrc] | 5 |
| Outer Bearing # [cntrc] | 410.91037 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 9.090 KG |
| Weight [cntrc] | 20.000 LB |
| Disc Mounting | Hub & Rotor |
| Inner Bearing | 410.91037 |
| Inner Seal | 417.680 |
| Misc Holes | 5 |
| Outer Bearing | 410.91037 |
| Vane Style | Straight |
| Weight | 9.090 KG |
| Weight | 20.000 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00822903822448 |
